DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckem-10 series extruded backdraft damperem-10

Greenheck Extruded Backdraft Damper (EM-10 Series). Model EM-10. Gravity-closed, pressure-opened operation; Standard counterbalanced operation; Blade seals made of Vinyl; Axle linkage is 1/8 in. (3mm) plated steel or 304SS. material: 6063T5 Extruded Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFem-10.pdfData sheet

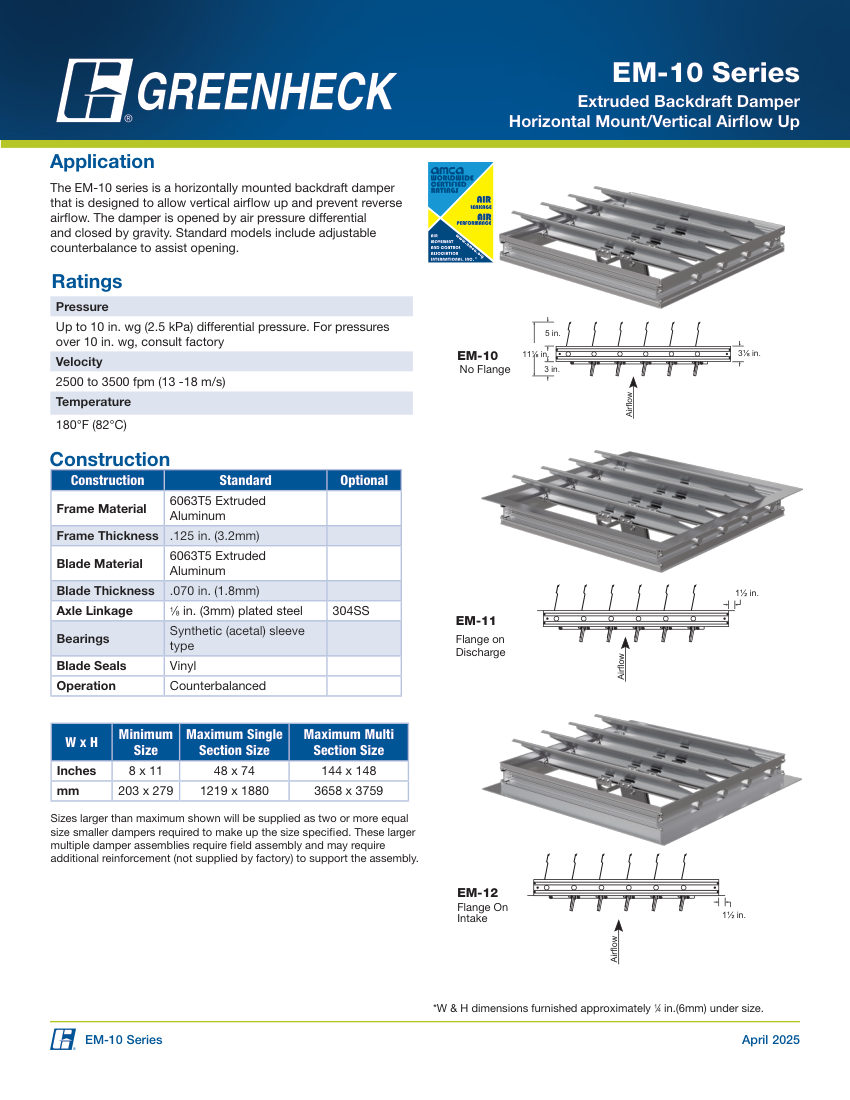

Greenheck em-10 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
em-10
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberem-10
DescriptionGreenheck Extruded Backdraft Damper (EM-10 Series). Model EM-10. Gravity-closed, pressure-opened operation; Standard counterbalanced operation; Blade seals made of Vinyl; Axle linkage is 1/8 in. (3mm) plated steel or 304SS. material: 6063T5 Extruded Aluminum
Connection size8 x 11 in. to 144 x 148 in.
End connectionNo Flange, Flange on Discharge, Flange on Intake
Pressure RatingUp to 10 in. wg (2.5 kPa)
Flow Rate2500 to 3500 fpm (13-18 m/s)
MountingHorizontal Mount / Vertical Airflow Up.
