Greenheckemv-11 extruded backdraft damperemv-11
Greenheck Backdraft Damper (Dampers). Model EMV-11. Frame and blade material is 6063T5 Extruded Aluminum; Axle and linkage are 316SS with stainless steel bearings; Blade seals are made of Vinyl; Maximum operating temperature is 180°F (82°C). material: 6063T5 Extruded Aluminum, 316SS, Vinyl
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- emv-11
- Product type
- Dampers
- MasterFormat
- 23

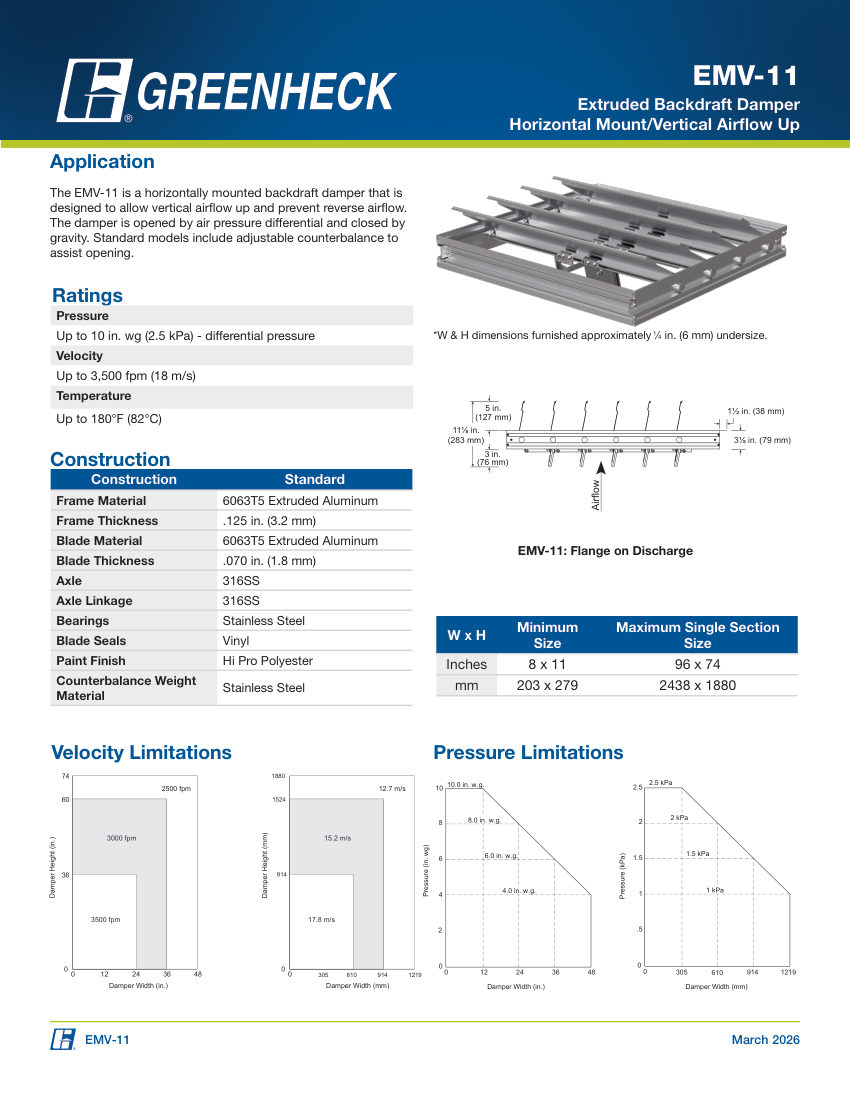

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | emv-11 |
|---|---|
| Description | Greenheck Backdraft Damper (Dampers). Model EMV-11. Frame and blade material is 6063T5 Extruded Aluminum; Axle and linkage are 316SS with stainless steel bearings; Blade seals are made of Vinyl; Maximum operating temperature is 180°F (82°C). material: 6063T5 Extruded Aluminum, 316SS, Vinyl |
| Connection size | Min 8 x 11 in (203 x 279 mm), Max 96 x 74 in (2438 x 1880 mm) |
| End connection | Flange on Discharge |
| Pressure Rating | Up to 10 in. wg (2.5 kPa) |
| Flow Rate | Up to 3,500 fpm (18 m/s) |
| Finish | Hi Pro Polyester. |
