Greenheckesd-202 stationary louveresd-202
Greenheck Stationary Louver (Louver). Model ESD-202. Drainable blade design positioned at 45 degrees; Blade centers approximately 3 in. (76 mm); Louver depth 2 in. (51 mm); Free area 37.6% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- esd-202
- Product type
- Louvers
- MasterFormat
- 08

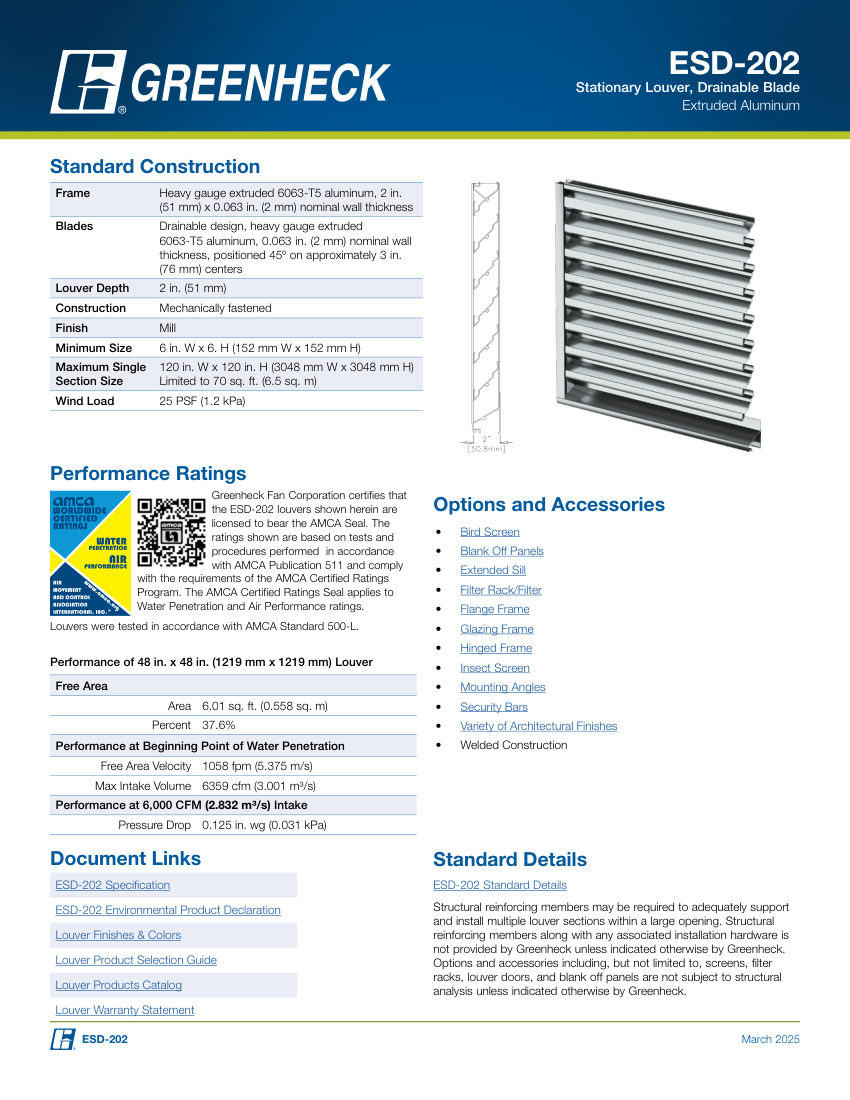

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | esd-202 |
|---|---|
| Description | Greenheck Stationary Louver (Louver). Model ESD-202. Drainable blade design positioned at 45 degrees; Blade centers approximately 3 in. (76 mm); Louver depth 2 in. (51 mm); Free area 37.6% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum |
| Pressure Rating | 25 PSF (1.2 kPa) Wind Load |
| Flow Rate | 6359 cfm (3.001 m³/s) Max Intake Volume |
| Finish | Mill |
| Mounting | Mechanically fastened |
| Dimensions | Min 6 in. W x 6 in. H; Max 120 in. W x 120 in. H. |
