DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckesd-435 stationary louveresd-435

Greenheck Stationary Louver (Louver). Model ESD-435. Drainable blade design; Blades positioned at 37.5 degrees; Louver depth is 4 in. (102 mm); Wind load rating of 25 PSF (1.2 kPa). material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFesd-435.pdfData sheet

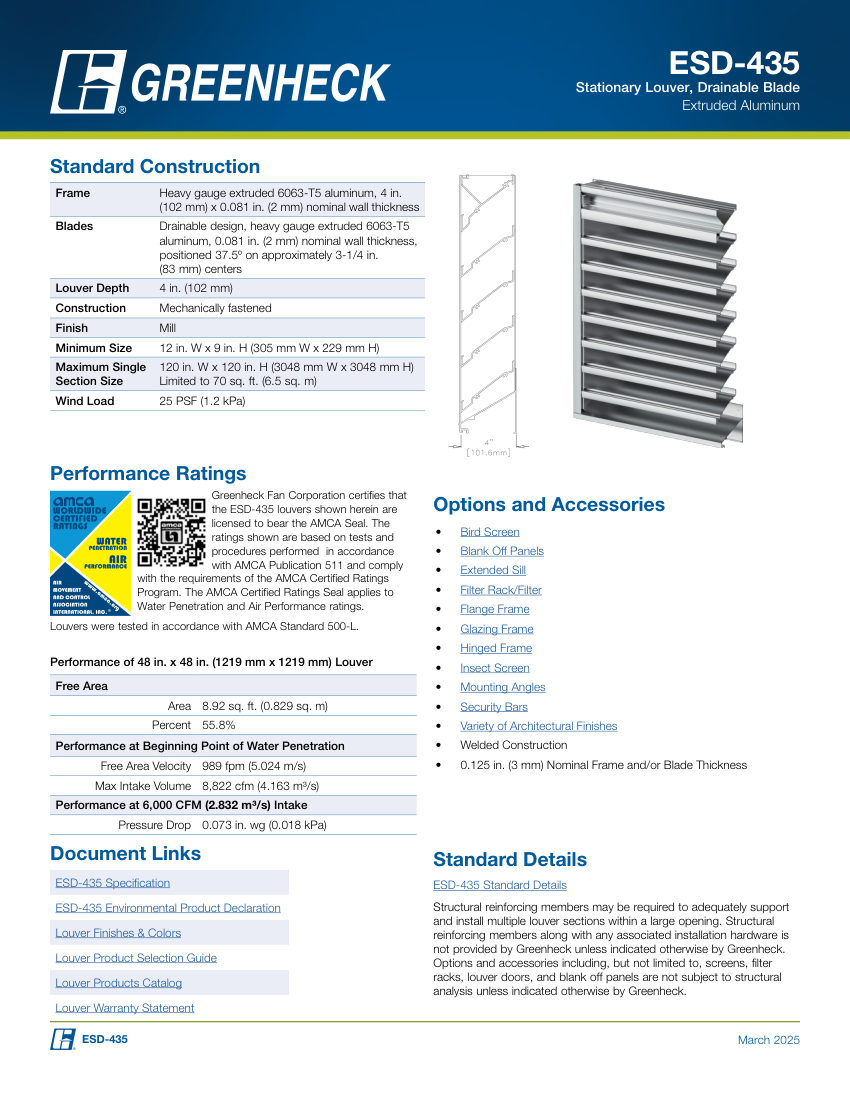

Greenheck esd-435 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
esd-435
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberesd-435
DescriptionGreenheck Stationary Louver (Louver). Model ESD-435. Drainable blade design; Blades positioned at 37.5 degrees; Louver depth is 4 in. (102 mm); Wind load rating of 25 PSF (1.2 kPa). material: Extruded 6063-T5 aluminum
Flow Rate8,822 cfm (4.163 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 9 in. H; Max 120 in. W x 120 in. H
ComplianceAMCA 500-L, AMCA 511.
