DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckesd-435x hurricane louveresd-435x

Greenheck Hurricane Louver (Louver). Model ESD-435X. Stationary louver with 4 in. (102 mm) depth; Blades positioned at 37.5 degrees on 3-1/4 in. (83 mm) centers

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFesd-435x.pdfData sheet

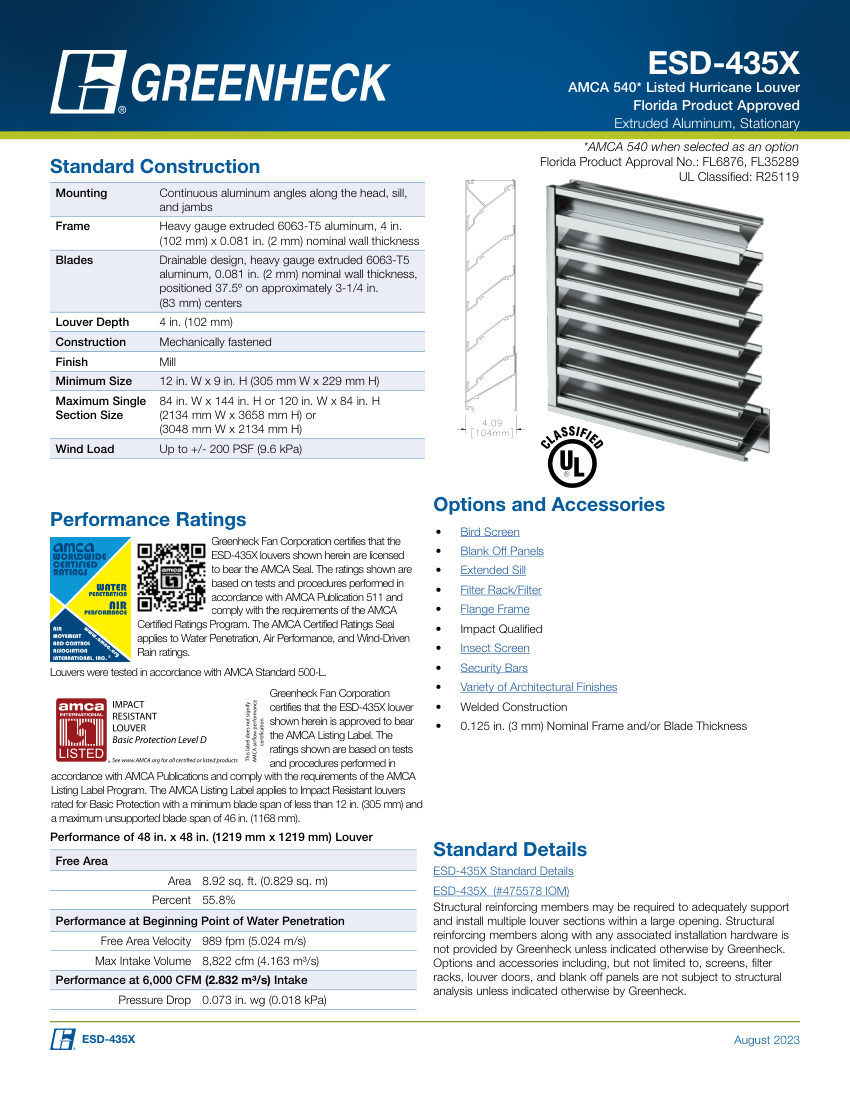

Greenheck esd-435x cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
esd-435x
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberesd-435x
DescriptionGreenheck Hurricane Louver (Louver). Model ESD-435X. Stationary louver with 4 in. (102 mm) depth; Blades positioned at 37.5 degrees on 3-1/4 in. (83 mm) centers
Free Area55.8% (8.92 sq. ft. for 48x48 in. size)
Pressure Drop0.073 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum
Pressure RatingUp to +/- 200 PSF (9.6 kPa)
Flow RateMax Intake Volume 8,822 cfm (4.163 m³/s)
FinishMill
MountingContinuous aluminum angles along the head, sill, and jambs
DimensionsMin: 12 in. W x 9 in. H
Max Single Section84 in. W x 144 in. H or 120 in. W x 84 in. H.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.

More from Greenheck

All 305 cut sheets →
Browse every manufacturer in the cut sheet library →

Put the esd-435x in a submittal package.

Describe the job and the AI agent builds the whole package — cut sheets pulled, schedule matched, cover and TOC included.

Get started freeNo card required
