DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckesd-603 stationary louveresd-603

Greenheck Stationary Louver (Louver). Model ESD-603. Drainable blade design positioned at 45 degrees; Blade centers approximately 3 in. (76 mm); Wind load rating 25 PSF (1.2 kPa); Free area percentage 52.3% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFesd-603.pdfData sheet

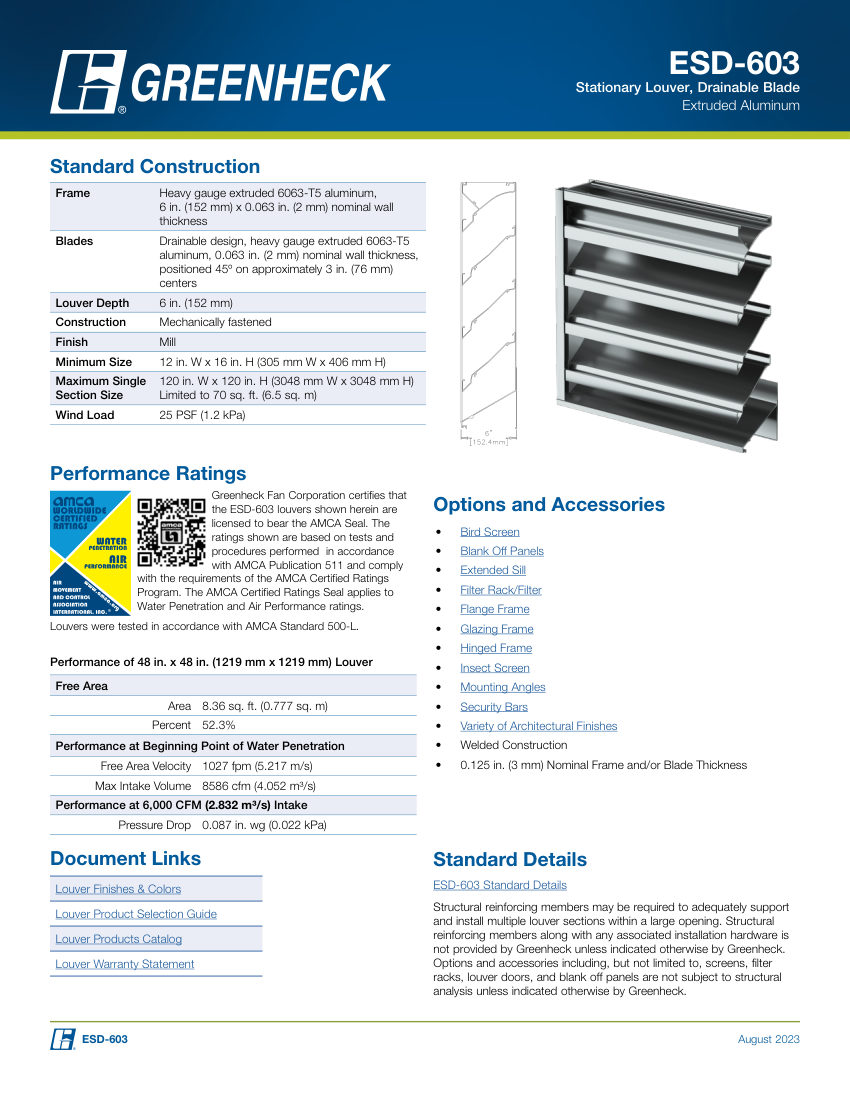

Greenheck esd-603 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
esd-603
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberesd-603
DescriptionGreenheck Stationary Louver (Louver). Model ESD-603. Drainable blade design positioned at 45 degrees; Blade centers approximately 3 in. (76 mm); Wind load rating 25 PSF (1.2 kPa); Free area percentage 52.3% (based on 48 in. x 48 in. test). material: Extruded 6063-T5 aluminum
Flow Rate8586 cfm (4.052 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 16 in. H; Max 120 in. W x 120 in. H; Depth 6 in.
ComplianceAMCA 500-L, AMCA 511.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.

More from Greenheck

All 305 cut sheets →
Browse every manufacturer in the cut sheet library →

Put the esd-603 in a submittal package.

Describe the job and the AI agent builds the whole package — cut sheets pulled, schedule matched, cover and TOC included.

Get started freeNo card required
