Greenheckesd-635 stationary louveresd-635
Greenheck Stationary Louver (Louvers). Model ESD-635. Drainable blade design positioned at 37 degrees; Blade centers approximately 4 in. (102 mm); Wind load rating 25 PSF (1.2 kPa); Free area 58.8% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- esd-635
- Product type
- Louvers
- MasterFormat
- 23

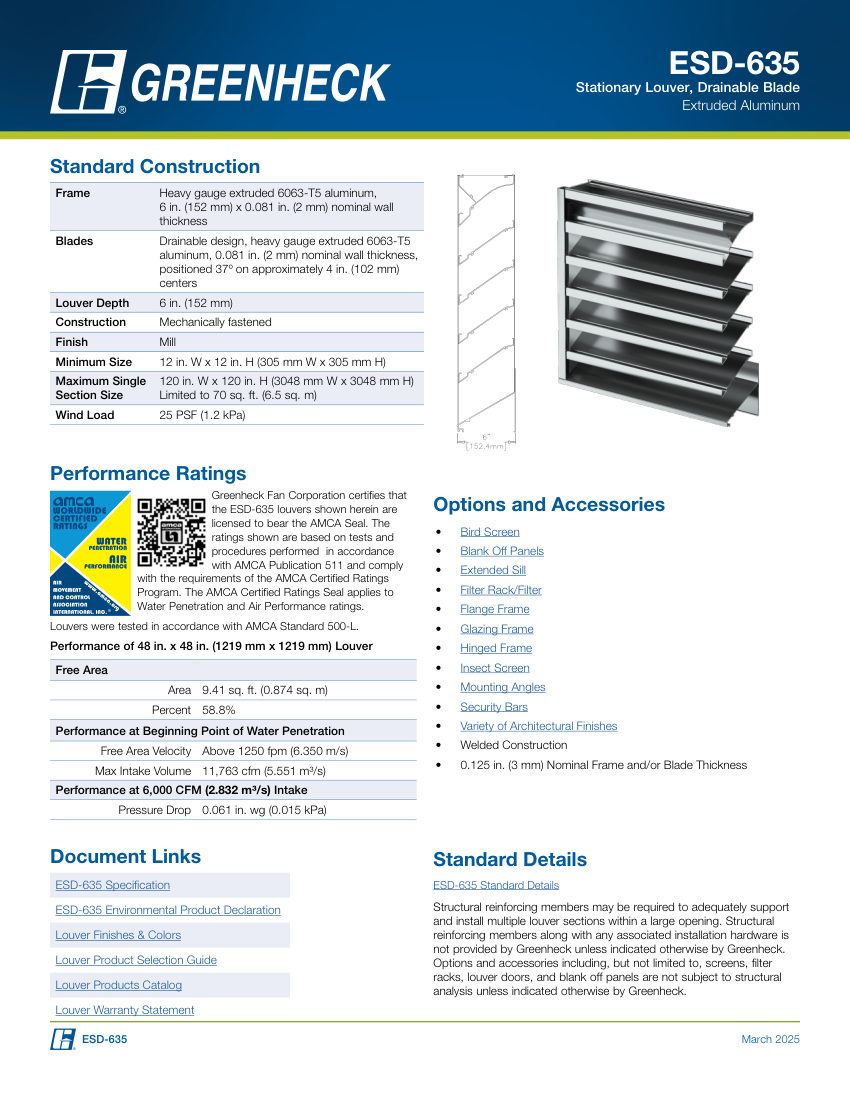

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | esd-635 |
|---|---|
| Description | Greenheck Stationary Louver (Louvers). Model ESD-635. Drainable blade design positioned at 37 degrees; Blade centers approximately 4 in. (102 mm); Wind load rating 25 PSF (1.2 kPa); Free area 58.8% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum |
| Flow Rate | 11,763 cfm (5.551 m³/s) max intake volume |
| Finish | Mill |
| Mounting | Mechanically fastened |
| Dimensions | Min 12 in. W x 12 in. H; Max 120 in. W x 120 in. H; Depth 6 in. |
| Compliance | AMCA 500-L, AMCA 511. |
