DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckesd-635d hurricane louveresd-635d

Greenheck Hurricane Louver (Louvers). Model ESD-635D. Stationary blades positioned at 37-degree angles; Blade wall thickness 0.081 in. (2 mm) or 0.125 in. (3 mm) depending on height; Louver depth is 6 in. (152 mm); Free area is 58.8% for a 48 in. x 48 in. section. material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFesd-635d.pdfData sheet

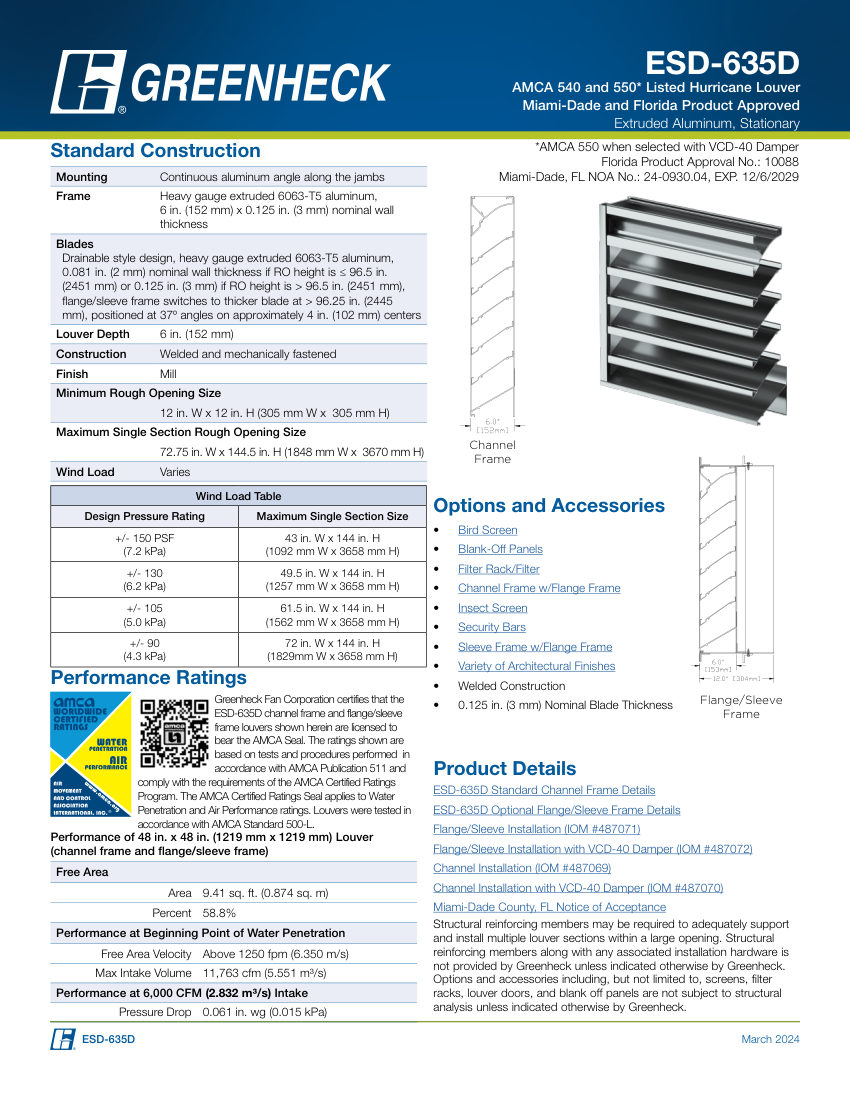

Greenheck esd-635d cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
esd-635d
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberesd-635d
DescriptionGreenheck Hurricane Louver (Louvers). Model ESD-635D. Stationary blades positioned at 37-degree angles; Blade wall thickness 0.081 in. (2 mm) or 0.125 in. (3 mm) depending on height; Louver depth is 6 in. (152 mm); Free area is 58.8% for a 48 in. x 48 in. section. material: Extruded 6063-T5 Aluminum
Pressure RatingUp to +/- 150 PSF (7.2 kPa)
Flow RateMax Intake Volume 11,763 cfm (5.551 m³/s) at 48 in. x 48 in.
FinishMill
MountingChannel Frame or Flange/Sleeve Frame
DimensionsMin RO: 12 in. W x 12 in. H
Max Single Section RO72.75 in. W x 144.5 in. H.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.

More from Greenheck

All 305 cut sheets →
Browse every manufacturer in the cut sheet library →

Put the esd-635d in a submittal package.

Describe the job and the AI agent builds the whole package — cut sheets pulled, schedule matched, cover and TOC included.

Get started freeNo card required
