Greenheckesd-635de hurricane louveresd-635de

Greenheck Hurricane Louver (Louvers). Model ESD-635DE. Stationary drainable style blades positioned at 37 degrees; Louver depth is 6 in. (152 mm); Free area is 58.8% for 48 in. x 48 in. size; Pressure drop is 0.061 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFesd-635de.pdfData sheet

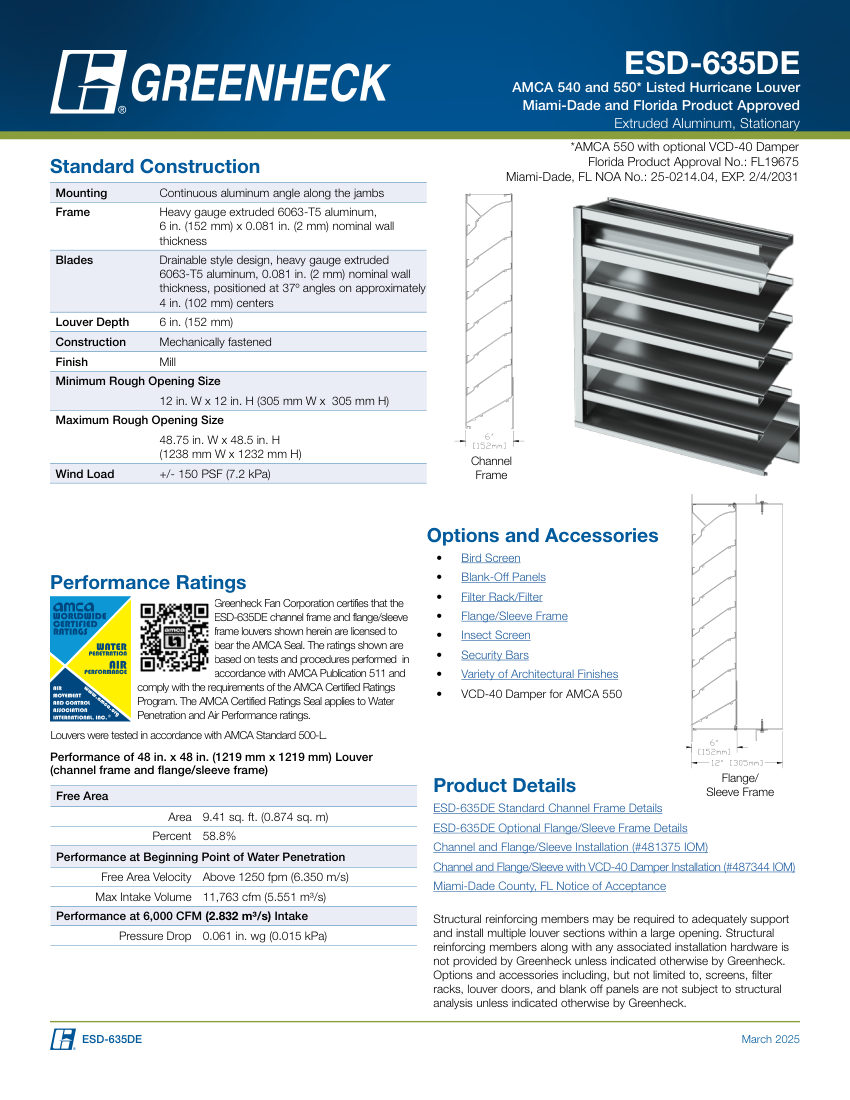

Greenheck esd-635de cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
esd-635de
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberesd-635de
DescriptionGreenheck Hurricane Louver (Louvers). Model ESD-635DE. Stationary drainable style blades positioned at 37 degrees; Louver depth is 6 in. (152 mm); Free area is 58.8% for 48 in. x 48 in. size; Pressure drop is 0.061 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum
Pressure Rating+/- 150 PSF (7.2 kPa)
Flow Rate11,763 cfm (5.551 m³/s)
FinishMill
MountingContinuous aluminum angle along the jambs
DimensionsMin 12 in. W x 12 in. H; Max 48.75 in. W x 48.5 in. H.
