DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckesd-635hp stationary louveresd-635hp

Greenheck Stationary Louver (Louver). Model ESD-635HP. Drainable blade design positioned at 37 degrees; Blade centers approximately 4.25 in. (108 mm); Wind load rating 25 PSF (1.2 kPa); Free area 61.5% for 48 in. x 48 in. size. material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFesd-635hp.pdfData sheet

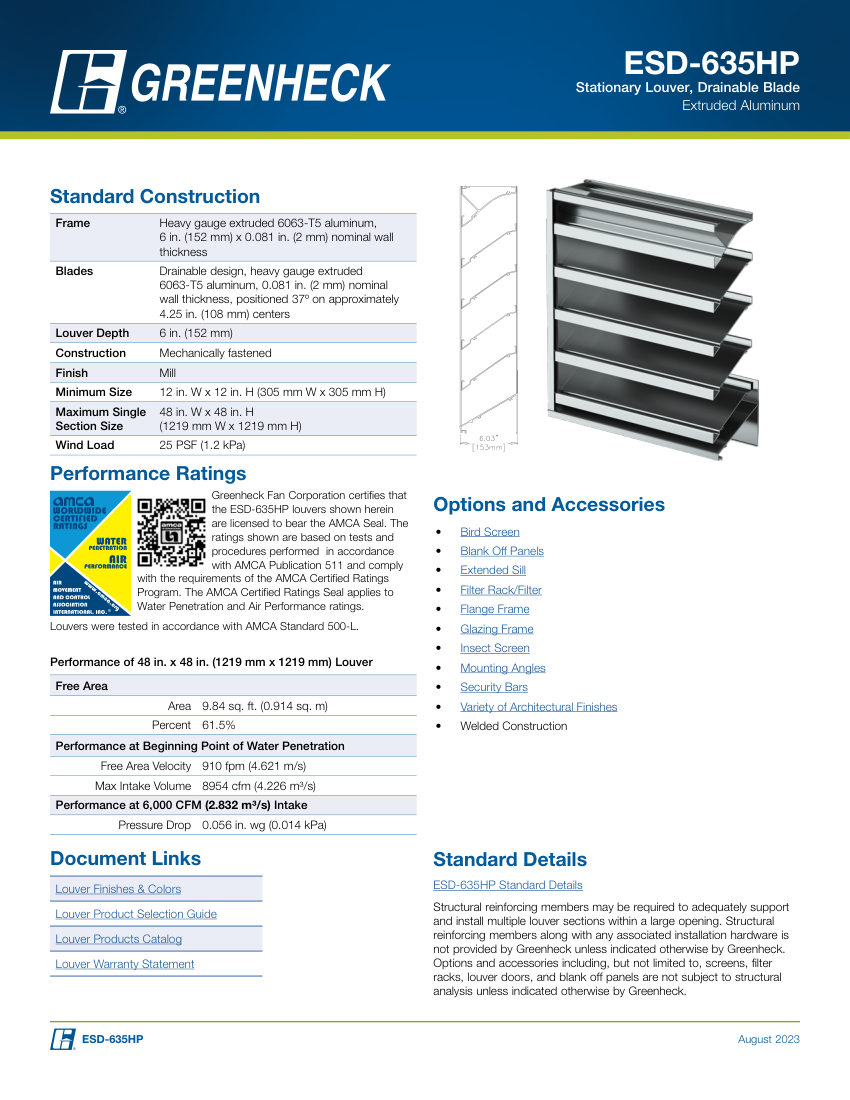

Greenheck esd-635hp cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
esd-635hp
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberesd-635hp
DescriptionGreenheck Stationary Louver (Louver). Model ESD-635HP. Drainable blade design positioned at 37 degrees; Blade centers approximately 4.25 in. (108 mm); Wind load rating 25 PSF (1.2 kPa); Free area 61.5% for 48 in. x 48 in. size. material: Extruded 6063-T5 Aluminum
Flow Rate8954 cfm (4.226 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 48 in. W x 48 in. H; Depth 6 in.
ComplianceAMCA 500-L, AMCA 511.
