DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckesd-635pd penthouseesd-635pd

Name: Greenheck esd-635pd penthouse
Brand: Greenheck
SKU: esd-635pd

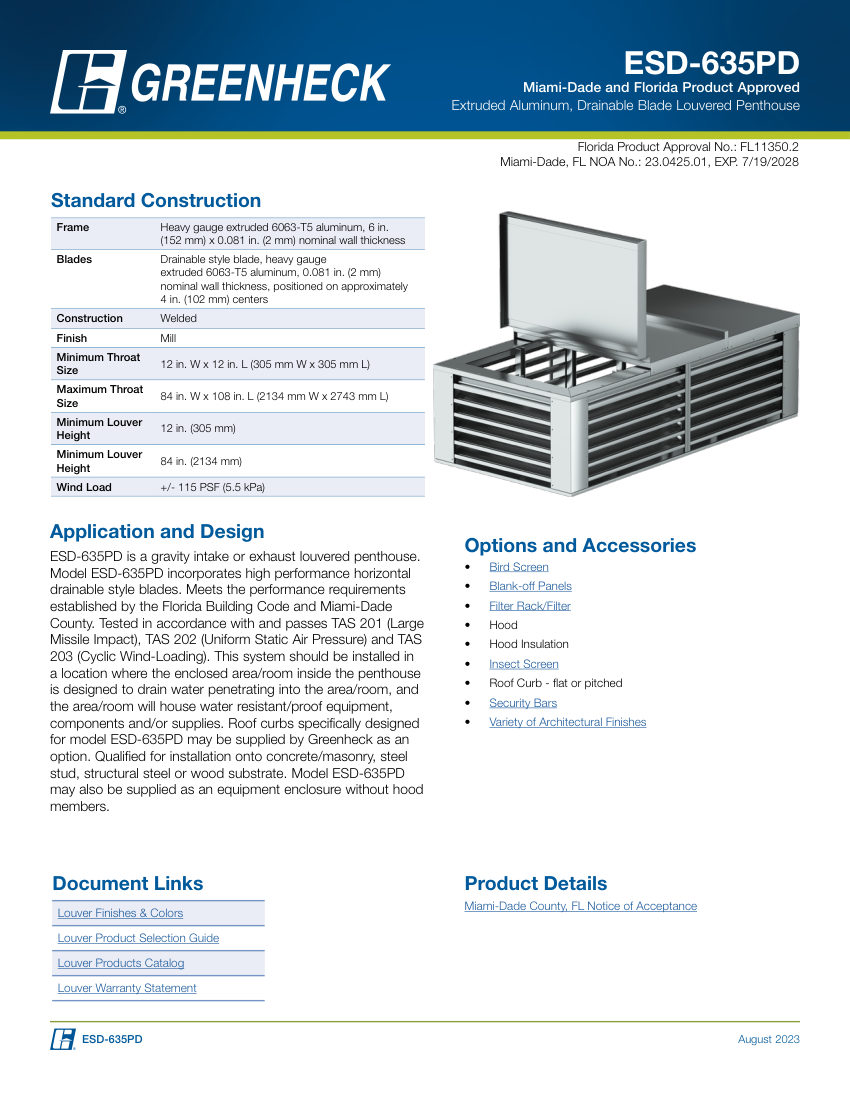

Greenheck Louvered Penthouse (Penthouse). Model ESD-635PD. Wind Load: +/- 115 PSF (5.5 kPa)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	esd-635pd
Description	Greenheck Louvered Penthouse (Penthouse). Model ESD-635PD. Wind Load: +/- 115 PSF (5.5 kPa)
Blade Style	Drainable, positioned on approx. 4 in. centers
Frame Wall Thickness	0.081 in. (2 mm)
Construction	Welded. material: Extruded 6063-T5 Aluminum
Finish	Mill
Mounting	Concrete/masonry, steel stud, structural steel or wood substrate
Dimensions	Min Throat: 12 in. W x 12 in. L
Max Throat	84 in. W x 108 in. L
Compliance	Florida Product Approval No. FL11350.2, Miami-Dade NOA No. 23.0425.01, TAS 201, TAS 202, TAS 203.
