Greenheck Hurricane Louver (Louvers). Model ESD-635X. Stationary louver with 6 in. (152 mm) depth; Blades positioned at 37 degrees on 4 in. (102 mm) centers; Free area of 58.8% for a 48 in. x 48 in. unit; Pressure drop of 0.061 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFesd-635x.pdfData sheet

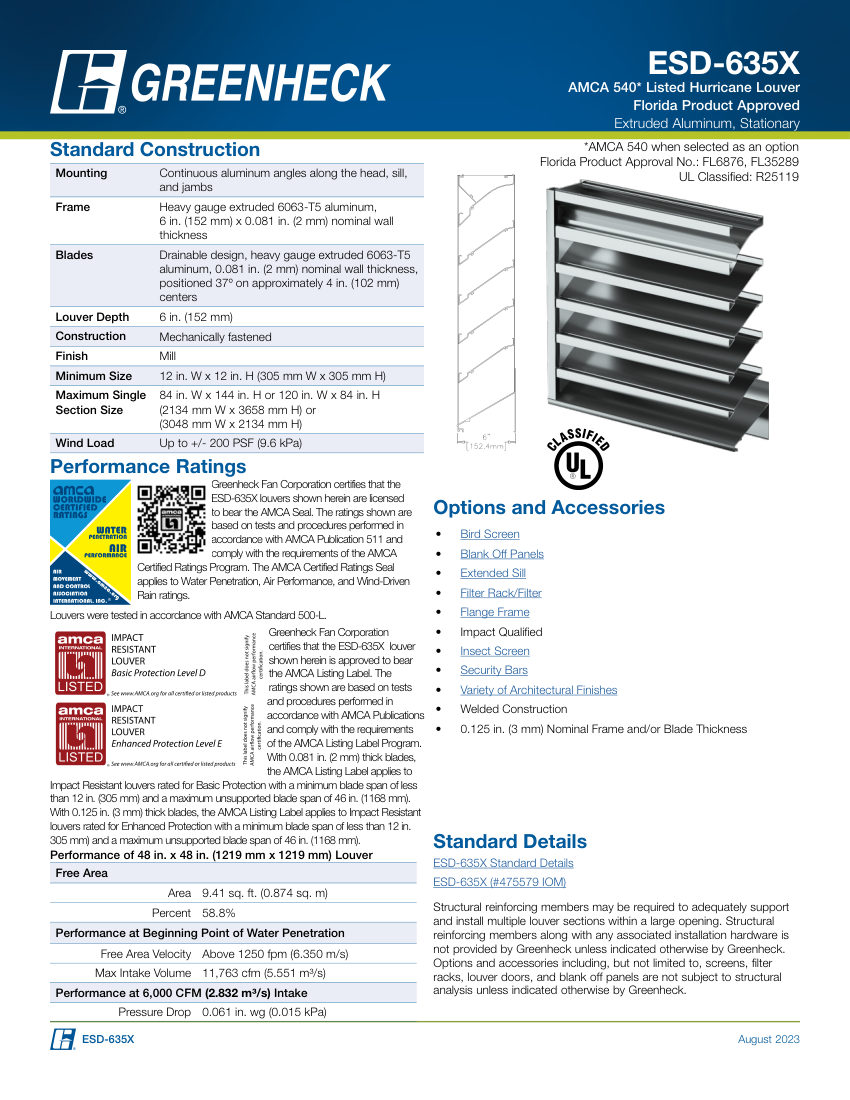

Greenheck esd-635x cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
esd-635x
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberesd-635x
DescriptionGreenheck Hurricane Louver (Louvers). Model ESD-635X. Stationary louver with 6 in. (152 mm) depth; Blades positioned at 37 degrees on 4 in. (102 mm) centers; Free area of 58.8% for a 48 in. x 48 in. unit; Pressure drop of 0.061 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum
Pressure RatingUp to +/- 200 PSF (9.6 kPa)
Flow RateMax Intake Volume 11,763 cfm (5.551 m³/s)
FinishMill
MountingContinuous aluminum angles along the head, sill, and jambs
DimensionsMin: 12 in. W x 12 in. H
Max Single Section84 in. W x 144 in. H or 120 in. W x 84 in. H.
