Greenheckesj-401 stationary louveresj-401
Greenheck Stationary Louver (Louver). Model ESJ-401. J-style blades positioned at 37° and 45°; Louver depth is 4 in. (102 mm); Wind load rating of 25 PSF (1.2 kPa); Free area percentage of 52.8% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- esj-401
- Product type
- Louvers
- MasterFormat
- 23

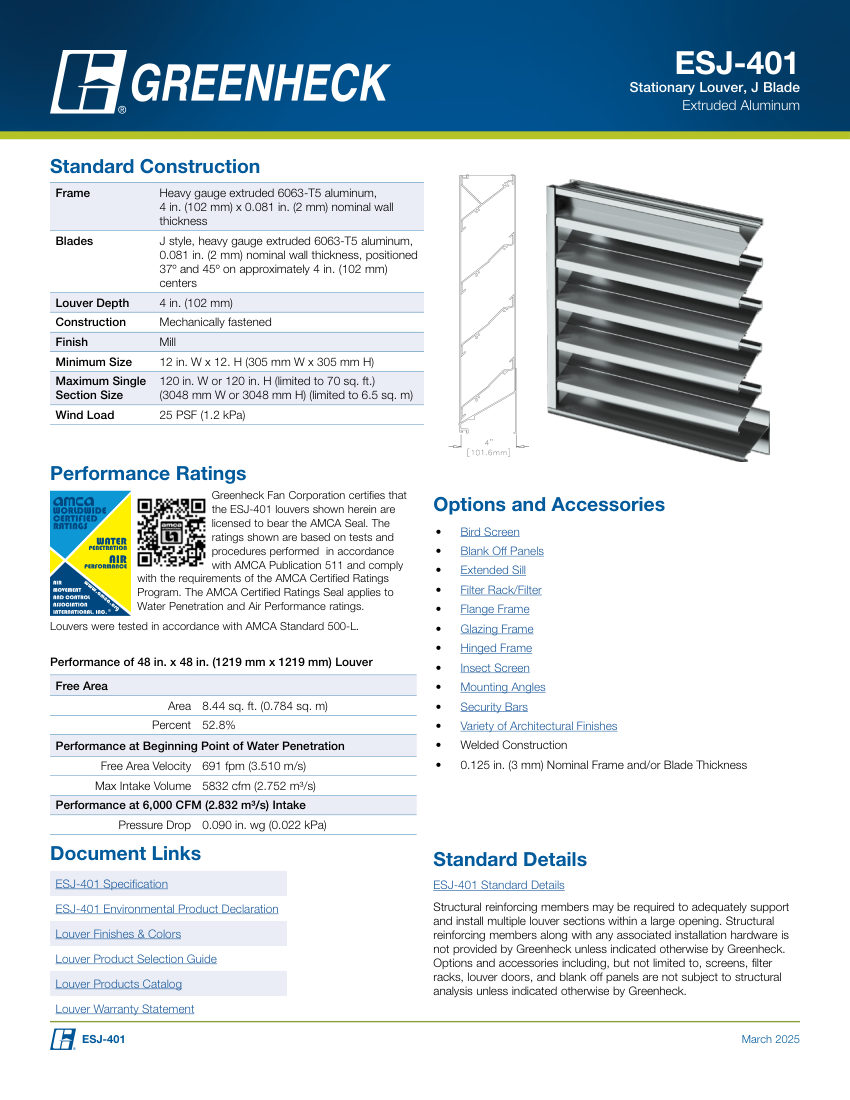

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | esj-401 |
|---|---|
| Description | Greenheck Stationary Louver (Louver). Model ESJ-401. J-style blades positioned at 37° and 45°; Louver depth is 4 in. (102 mm); Wind load rating of 25 PSF (1.2 kPa); Free area percentage of 52.8% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum |
| Flow Rate | 5832 cfm (2.752 m³/s) max intake volume |
| Finish | Mill |
| Mounting | Mechanically fastened |
| Dimensions | Min 12 in. W x 12 in. H; Max 120 in. W or 120 in. H |
| Compliance | AMCA 500-L, AMCA 511. |
