Greenheckesj-602 stationary louveresj-602
Greenheck Stationary Louver (Louver). Model ESJ-602. J-style blades positioned at 37° and 45°; Louver depth is 6 in. (152 mm); Wind load rating of 25 PSF (1.2 kPa); Free area percentage of 53.5% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- esj-602
- Product type
- Louvers
- MasterFormat
- 23

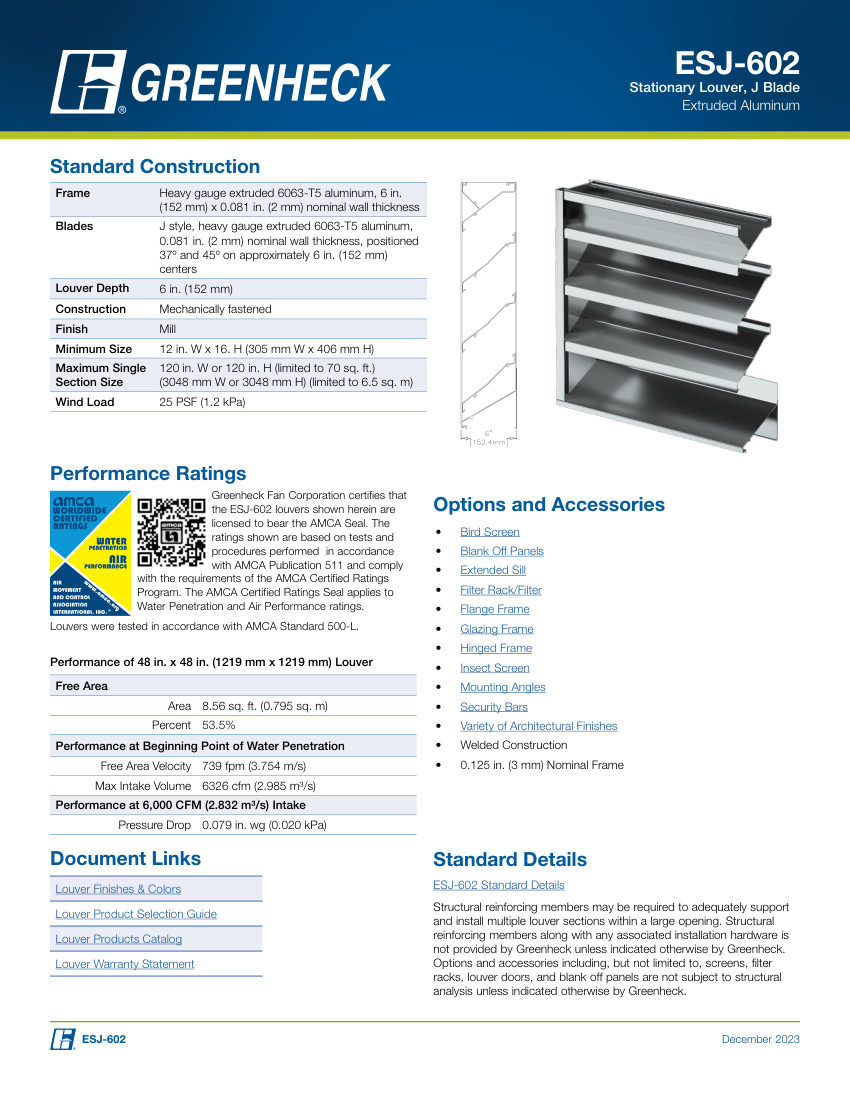

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | esj-602 |
|---|---|
| Description | Greenheck Stationary Louver (Louver). Model ESJ-602. J-style blades positioned at 37° and 45°; Louver depth is 6 in. (152 mm); Wind load rating of 25 PSF (1.2 kPa); Free area percentage of 53.5% for 48 in. x 48 in. size. material: Extruded 6063-T5 aluminum |
| Flow Rate | 6326 cfm (2.985 m³/s) max intake volume |
| Finish | Mill |
| Mounting | Mechanically fastened |
| Dimensions | Min 12 in. W x 16 in. H; Max 120 in. W or 120 in. H |
| Compliance | AMCA 500-L, AMCA 511. |
