DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED

Greenheckevh-302 wind driven rain louverevh-302

Greenheck Wind-Driven Rain Louver (Louver). Model EVH-302. Vertical blade design with 7/8 in. (22 mm) centers; Free Area 50.8% for 48 in. x 48 in. size; Pressure Drop 0.096 in. wg at 6,000 CFM intake; Blade wall thickness 0.050 in. (2 mm). material: Extruded Aluminum (6005-T5 Frame, 6063-T5 Blades)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFevh-302.pdfData sheet

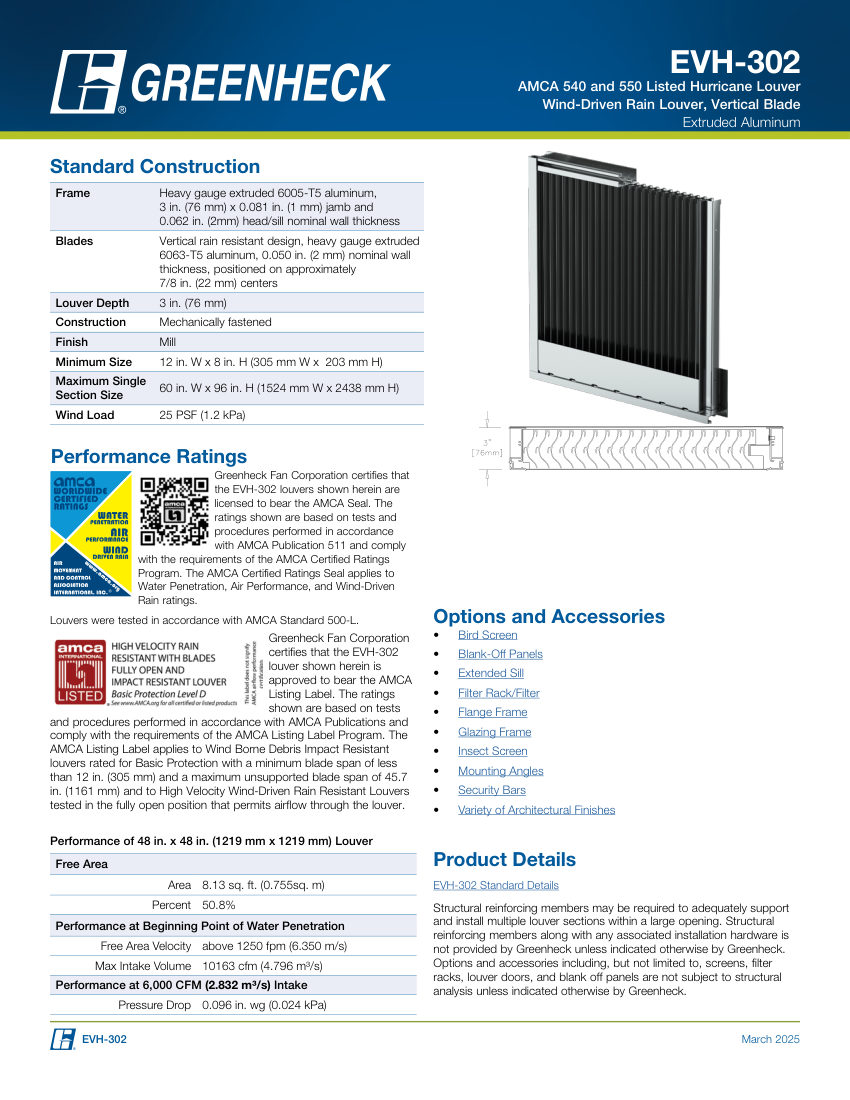

Greenheck evh-302 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
evh-302
Product type
Louvers
MasterFormat
08
Cut sheet
PDF · manufacturer current

Product details

Catalog numberevh-302
DescriptionGreenheck Wind-Driven Rain Louver (Louver). Model EVH-302. Vertical blade design with 7/8 in. (22 mm) centers; Free Area 50.8% for 48 in. x 48 in. size; Pressure Drop 0.096 in. wg at 6,000 CFM intake; Blade wall thickness 0.050 in. (2 mm). material: Extruded Aluminum (6005-T5 Frame, 6063-T5 Blades)
Pressure Rating25 PSF (1.2 kPa) Wind Load
Flow RateMax Intake Volume 10163 cfm (4.796 m³/s) at 48x48 in
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 8 in. H; Max 60 in. W x 96 in. H; Depth 3 in.
