DIV 08 · OPENINGSLOUVERSCUT SHEET INDEXED
Greenheckevh-302d hurricane louverevh-302d
Greenheck Hurricane Louver (Louver). Model EVH-302D. Wind-Driven Rain Resistant
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- evh-302d
- Product type
- Louvers
- MasterFormat
- 08

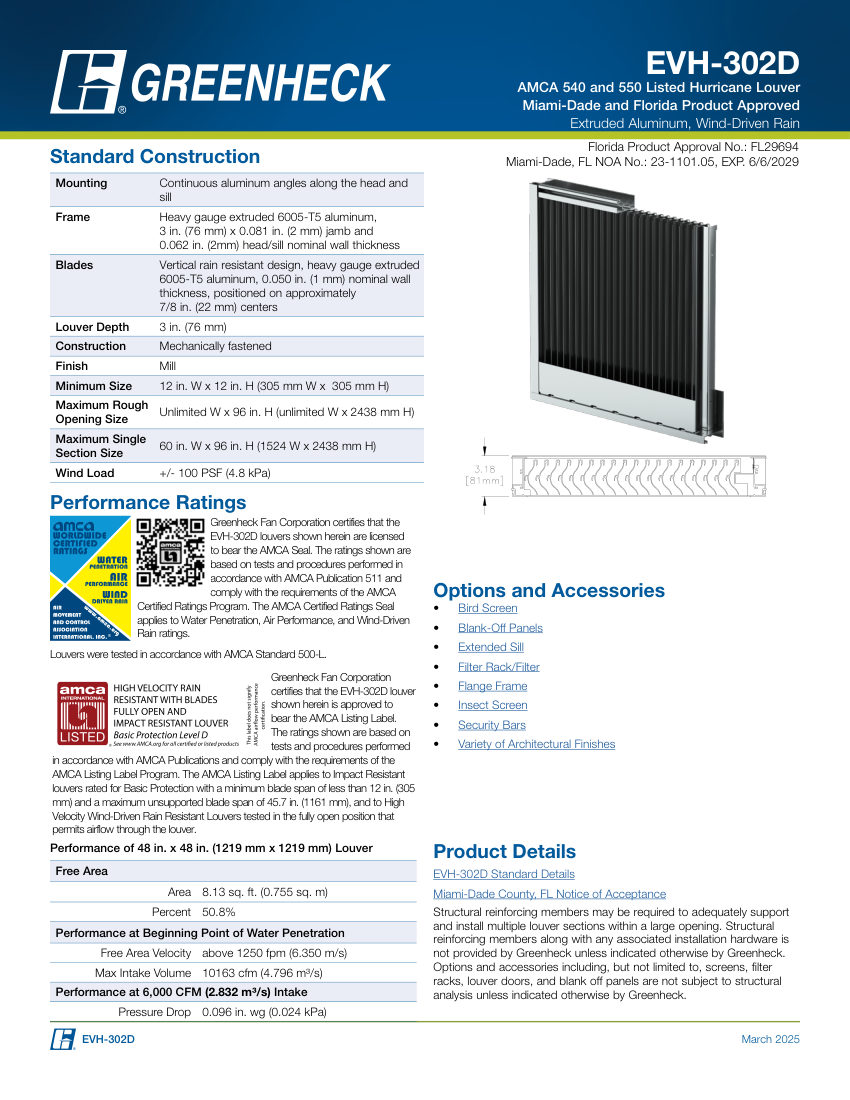

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | evh-302d |
|---|---|
| Description | Greenheck Hurricane Louver (Louver). Model EVH-302D. Wind-Driven Rain Resistant |
| Louver Depth | 3 in. (76 mm) |
| Blade Wall Thickness | 0.050 in. (1 mm) |
| Free Area | 50.8% (for 48x48 in. louver). material: Extruded 6005-T5 Aluminum |
| Pressure Rating | +/- 100 PSF (4.8 kPa) |
| Flow Rate | 10163 cfm (4.796 m³/s) at beginning point of water penetration |
| Finish | Mill |
| Mounting | Continuous aluminum angles along the head and sill |
| Dimensions | Min 12 in. W x 12 in. H; Max Rough Opening Unlimited W x 96 in. H; Max Single Section 60 in. W x 96 in. H. |
