DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenheckevh-501 wind driven rain louverevh-501

Greenheck Wind-Driven Rain Louver (Louver). Model EVH-501. Vertical blade design with 1.5 in. (38 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 54.4% for 48 in. x 48 in. size; Pressure drop of 0.079 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFevh-501.pdfData sheet

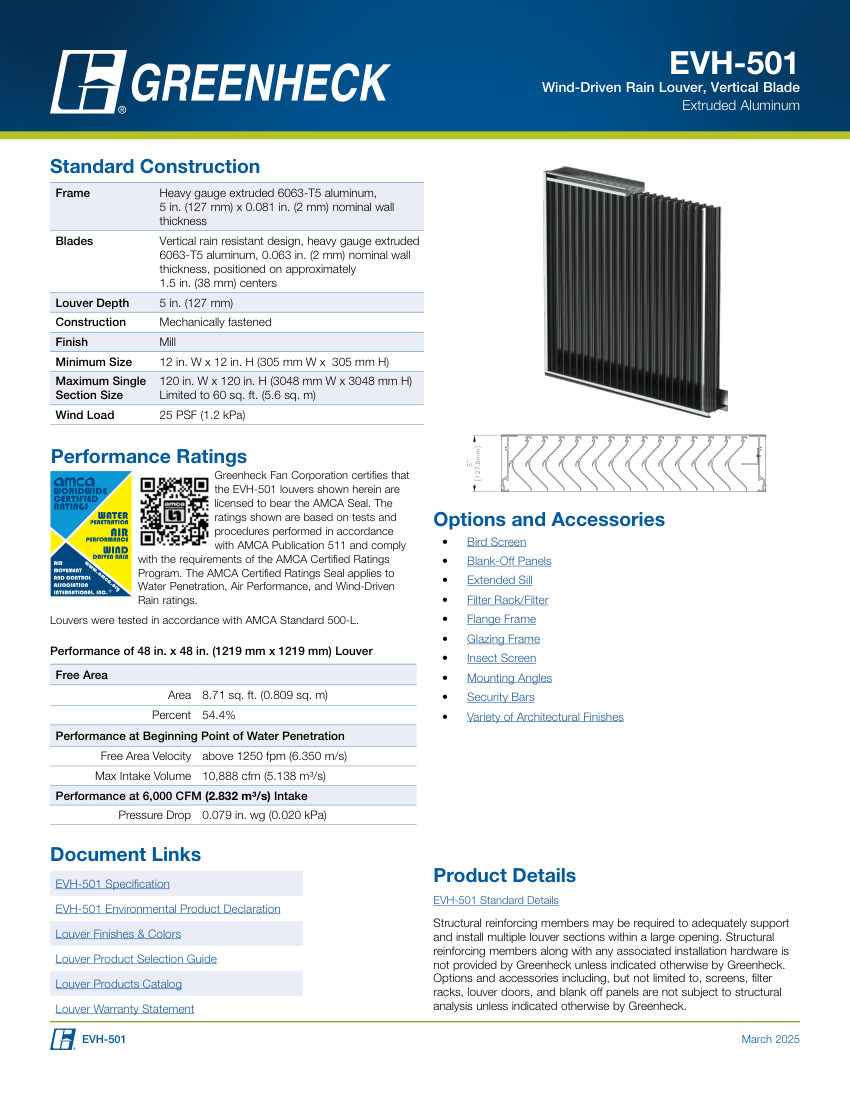

Greenheck evh-501 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
evh-501
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberevh-501
DescriptionGreenheck Wind-Driven Rain Louver (Louver). Model EVH-501. Vertical blade design with 1.5 in. (38 mm) centers; Wind load rating of 25 PSF (1.2 kPa); Free area of 54.4% for 48 in. x 48 in. size; Pressure drop of 0.079 in. wg at 6,000 CFM intake. material: Extruded 6063-T5 Aluminum
Flow Rate10,888 cfm (5.138 m³/s) Max Intake Volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 120 in. W x 120 in. H; Depth 5 in.
ComplianceAMCA Certified Ratings (AMCA 500-L).
