Greenheckevh-501d hurricane louverevh-501d
Greenheck Hurricane Louver (Louver). Model EVH-501D. Wind-Driven Rain Resistant; Louver Depth 5 in. (127 mm); Blade Centers approx. 1.5 in. (38 mm); Free Area 54.8% (48x48 in. model). material: Extruded 6005-T5 and 6063-T5 Aluminum
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- evh-501d
- Product type
- Louvers
- MasterFormat
- 08

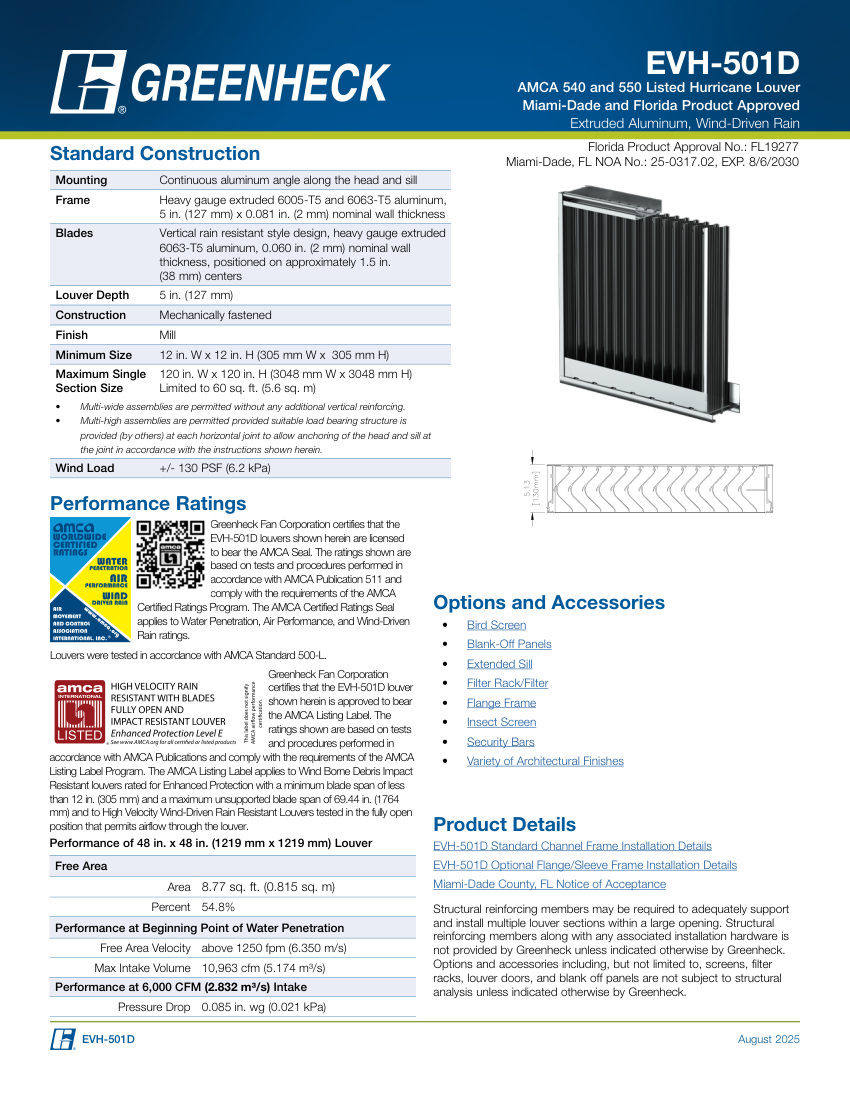

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | evh-501d |
|---|---|
| Description | Greenheck Hurricane Louver (Louver). Model EVH-501D. Wind-Driven Rain Resistant; Louver Depth 5 in. (127 mm); Blade Centers approx. 1.5 in. (38 mm); Free Area 54.8% (48x48 in. model). material: Extruded 6005-T5 and 6063-T5 Aluminum |
| Pressure Rating | +/- 130 PSF (6.2 kPa) |
| Flow Rate | 10,963 cfm (5.174 m³/s) Max Intake Volume |
| Finish | Mill |
| Mounting | Continuous aluminum angle along the head and sill |
| Dimensions | Min 12 in. W x 12 in. H; Max Single 120 in. W x 120 in. H. |
