DIV 23 · HVACLOUVERSCUT SHEET INDEXED
Greenheckevh-660d hurricane louverevh-660d
Greenheck Hurricane Louver (Louver). Model EVH-660D. Wind-Driven Rain Resistant
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- evh-660d
- Product type
- Louvers
- MasterFormat
- 23

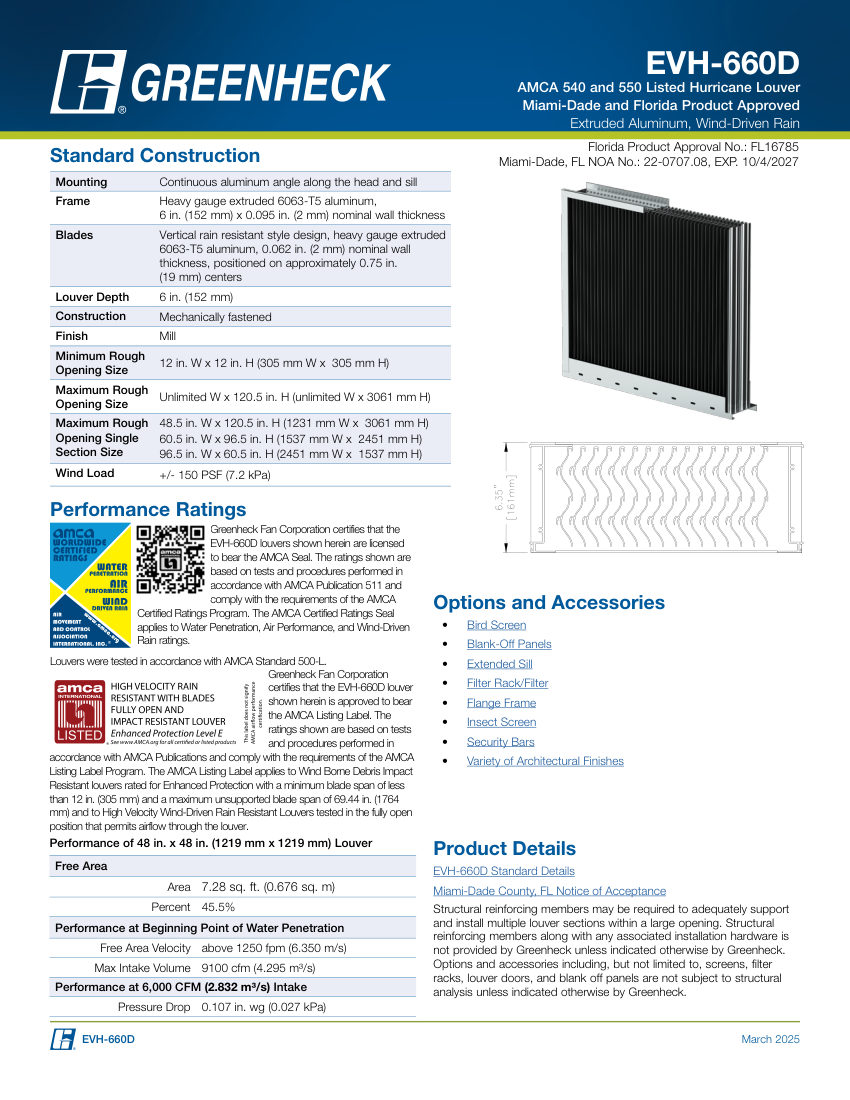

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | evh-660d |
|---|---|
| Description | Greenheck Hurricane Louver (Louver). Model EVH-660D. Wind-Driven Rain Resistant |
| Louver Depth | 6 in. (152 mm) |
| Blade Spacing | ~0.75 in. (19 mm) centers |
| Free Area | 45.5% (for 48x48 in. size). material: Extruded 6063-T5 Aluminum |
| Pressure Rating | +/- 150 PSF (7.2 kPa) |
| Flow Rate | 9100 cfm (4.295 m³/s) |
| Finish | Mill |
| Mounting | Continuous aluminum angle along the head and sill |
| Dimensions | Min Rough: 12 in. W x 12 in. H |
| Max Rough | Unlimited W x 120.5 in. H. |
