DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckfbv-23 vertical face and bypass damperfbv-23

Greenheck Vertical Face and Bypass Damper (Damper). Model FBV-23. 3V blade design with parallel or opposed action; Leakage rating of 3 cfm/ft2 at 1 in. wg; Frame thickness 16 ga. (1.5 mm); Blade seals made of TPE (standard) or Silicone (optional). material: Galvanized steel frame and blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFfbv-23.pdfData sheet

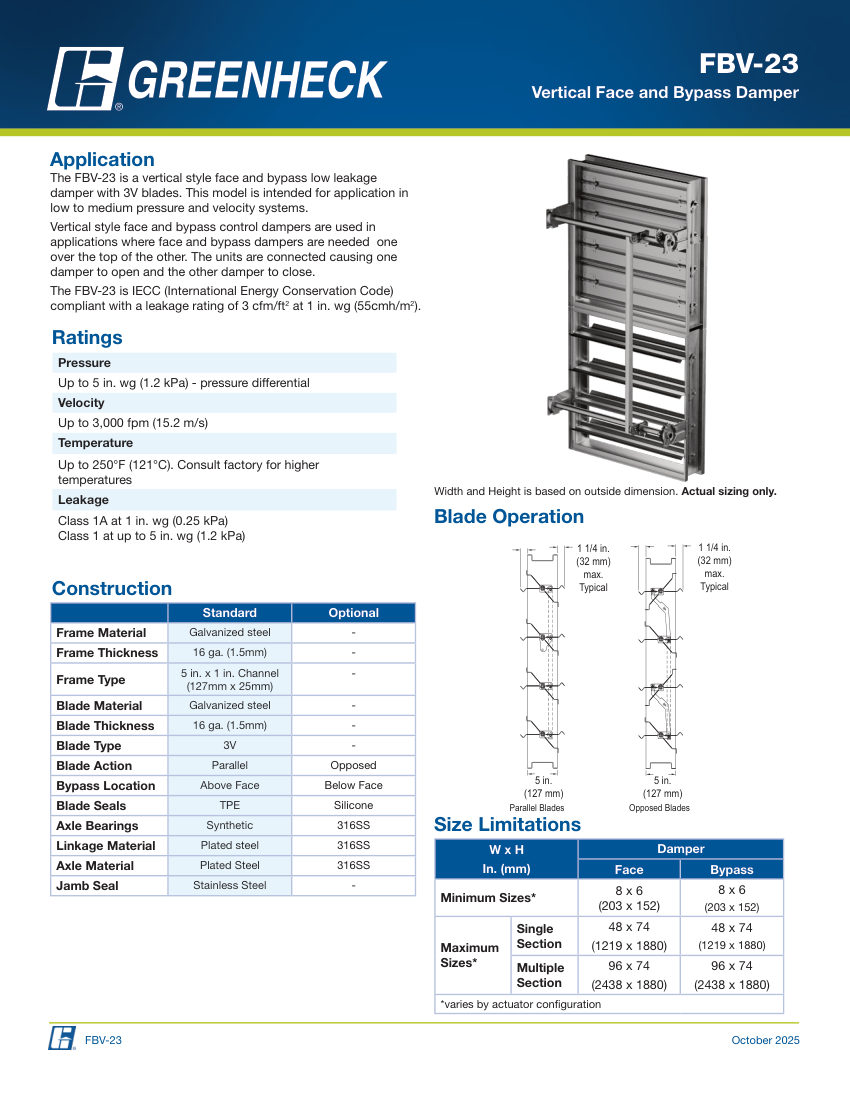

Greenheck fbv-23 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
fbv-23
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberfbv-23
DescriptionGreenheck Vertical Face and Bypass Damper (Damper). Model FBV-23. 3V blade design with parallel or opposed action; Leakage rating of 3 cfm/ft2 at 1 in. wg; Frame thickness 16 ga. (1.5 mm); Blade seals made of TPE (standard) or Silicone (optional). material: Galvanized steel frame and blades
Connection sizeMin 8x6 in (203x152 mm), Max Single 48x74 in (1219x1880 mm), Max Multiple 96x74 in (2438x1880 mm)
Pressure RatingUp to 5 in. wg (1.2 kPa)
Flow RateUp to 3,000 fpm (15.2 m/s)
MountingVertical
ComplianceIECC compliant, Class 1A at 1 in. wg, Class 1 at 5 in. wg.
