Greenheckfd-110 static rated fire damperfd-110
Greenheck Static Rated Fire Damper (Fire Damper). Model FD-110. 1 1/2 hour fire resistance rating; Fusible link rating 165°F (74°C) standard, 212°F (100°C) optional; Approved for walls, floors, and partitions with fire resistance rating less than 3 hours; Static rated for HVAC systems that automatically shut down in fire. material: Galvanized steel frame and blades, stainless steel closure spring
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- fd-110
- Product type
- Dampers
- MasterFormat
- 23

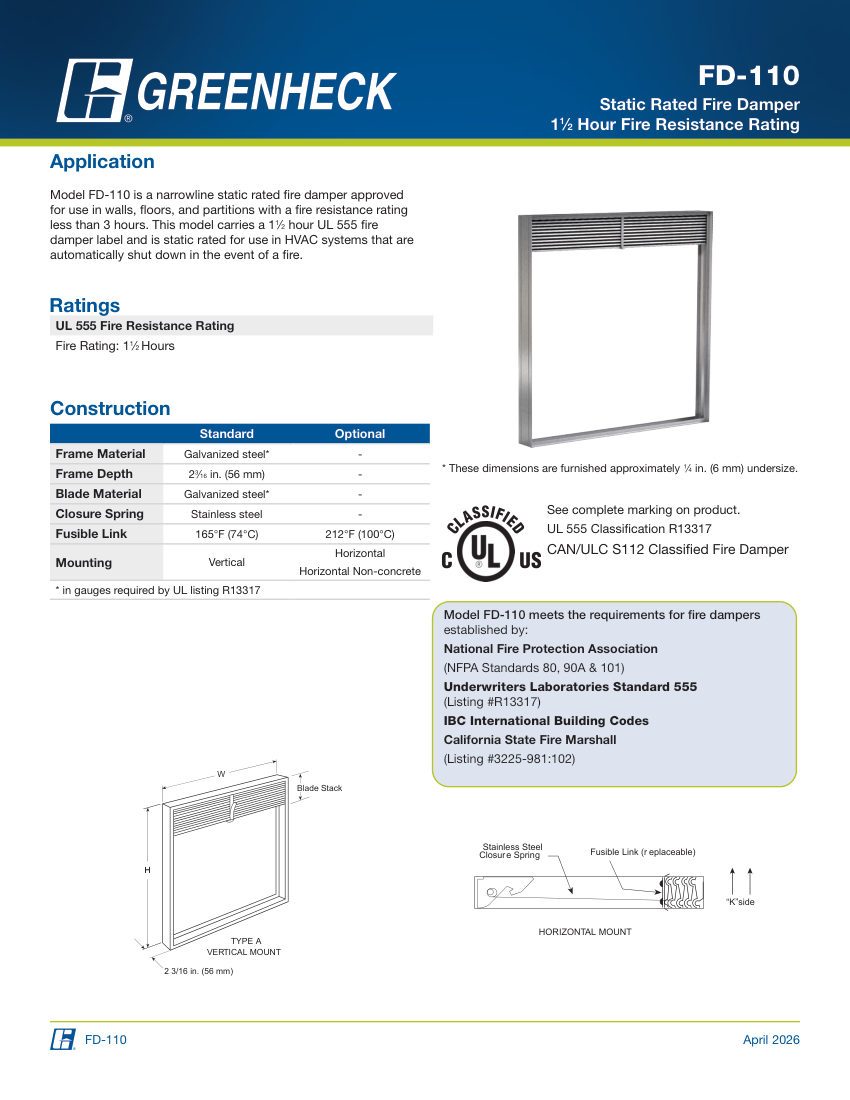

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | fd-110 |
|---|---|
| Description | Greenheck Static Rated Fire Damper (Fire Damper). Model FD-110. 1 1/2 hour fire resistance rating; Fusible link rating 165°F (74°C) standard, 212°F (100°C) optional; Approved for walls, floors, and partitions with fire resistance rating less than 3 hours; Static rated for HVAC systems that automatically shut down in fire. material: Galvanized steel frame and blades, stainless steel closure spring |
| Pressure Rating | Static rated |
| Mounting | Vertical and Horizontal (Non-concrete) |
| Dimensions | Frame depth 2 3/16 in. (56 mm) |
| Compliance | UL 555 (Listing R13317), NFPA 80/90A/101, IBC, CAN/ULC S112. |
