Greenheckfskn bacnet test moduleFSKN120-BAC

Greenheck BACnet Test Module (Damper Testing Module). Model FSKN. Communication via BACnet MS/TP and Modbus RTU (RS-485); Power consumption 0.4W (DC) or 0.4VA (AC); Ambient temperature range -4° to 122°F (-20° to 50°C); IP10 / NEMA 1 protection rating. endConnection: Screw terminal for 18 ga. wire

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFSKN120-BAC.pdfData sheet

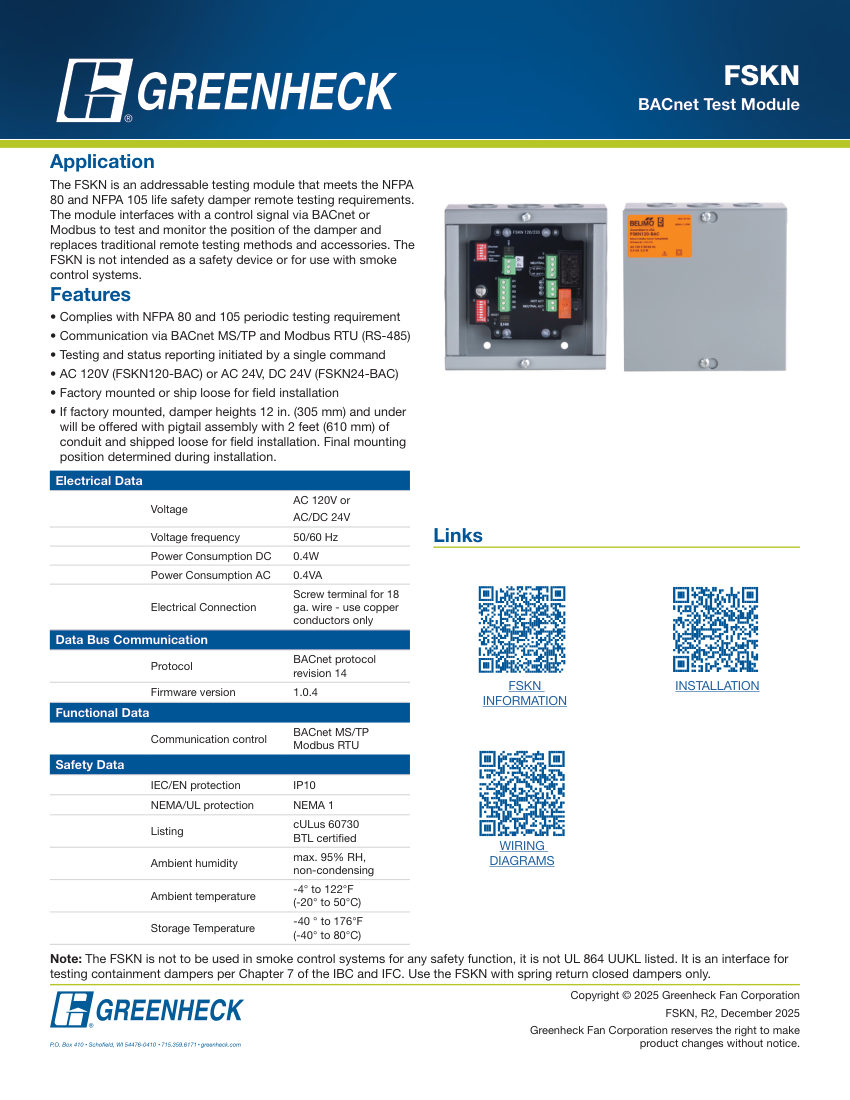

Greenheck FSKN120-BAC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
FSKN120-BAC
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFSKN120-BAC
DescriptionGreenheck BACnet Test Module (Damper Testing Module). Model FSKN. Communication via BACnet MS/TP and Modbus RTU (RS-485); Power consumption 0.4W (DC) or 0.4VA (AC); Ambient temperature range -4° to 122°F (-20° to 50°C); IP10 / NEMA 1 protection rating. endConnection: Screw terminal for 18 ga. wire
MountingFactory mounted or ship loose
ComplianceNFPA 80, NFPA 105, cULus 60730, BTL certified
VoltageAC 120V or AC/DC 24V.

Also cataloged as: FSKN24-BAC, FSKN-120-BAC, FSKN-24-BAC
