Greenheckgm-30 series backdraft dampergm-30

Greenheck Backdraft Damper (GM-30 Series). Model GM-30. Vertical mounted backdraft damper for horizontal airflow; Frame material is 18 ga. (1.3 mm) galvanized steel; Blade material is .070 in. (1.8 mm) 6063T5 extruded aluminum; Operates with fully adjustable counterbalance weights. material: Galvanized Steel Frame, 6063T5 Extruded Aluminum Blade

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFgm-30.pdfData sheet

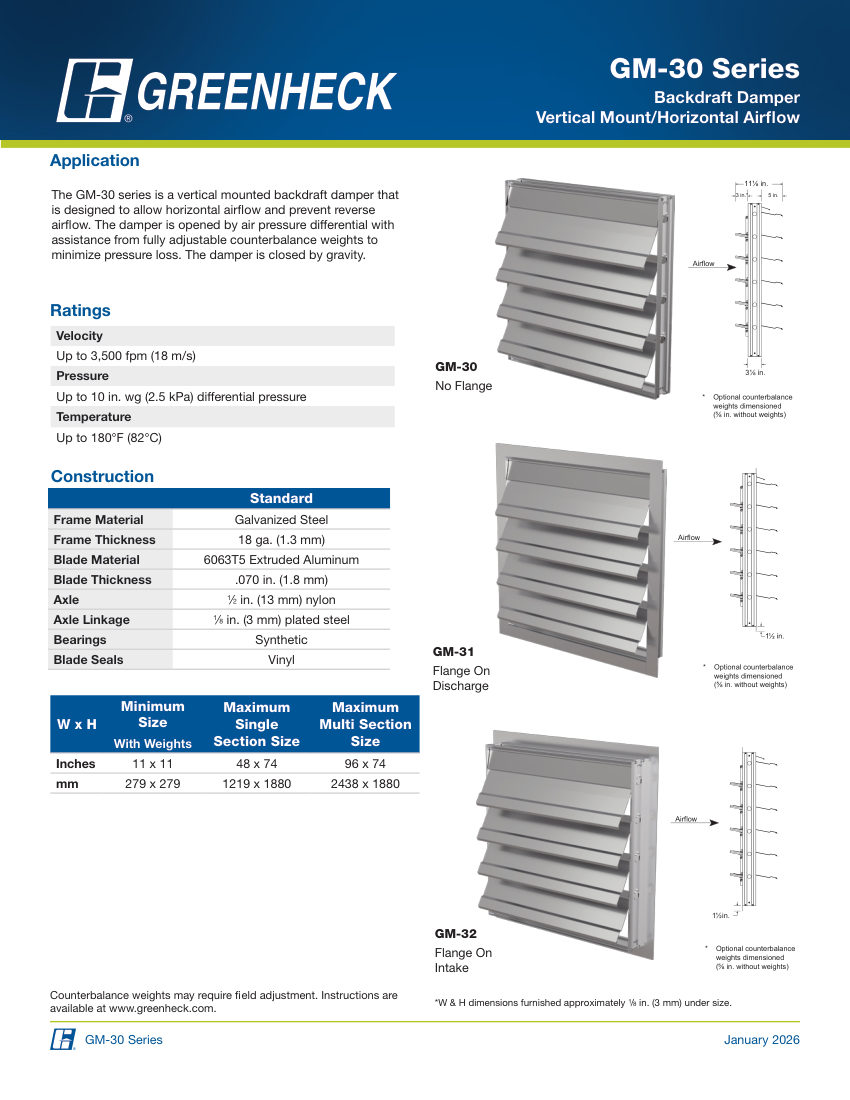

Greenheck gm-30 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
gm-30
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbergm-30
DescriptionGreenheck Backdraft Damper (GM-30 Series). Model GM-30. Vertical mounted backdraft damper for horizontal airflow; Frame material is 18 ga. (1.3 mm) galvanized steel; Blade material is .070 in. (1.8 mm) 6063T5 extruded aluminum; Operates with fully adjustable counterbalance weights. material: Galvanized Steel Frame, 6063T5 Extruded Aluminum Blade
Connection sizeMin 11x11 in, Max Single 48x74 in, Max Multi 96x74 in
End connectionVertical Mount
Pressure RatingUp to 10 in. wg (2.5 kPa)
Flow RateUp to 3,500 fpm (18 m/s)
MountingVertical Mount/Horizontal Airflow.
