Greenheck Grille Options (Dampers). Model ABD Series. Available in Single Deflection (Vertical Blades), Double Deflection (Vertical/Horizontal Blades), and Return/Exhaust (Surface Mount) styles; Single Deflection grille depth is 1 15/16 in. (49 mm); Double Deflection grille depth is 1 7/8 in. (47 mm); Return/Exhaust grille depth is 1 1/4 in. (32 mm). mounting: Countersunk mounting holes

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFgrille-options.pdfData sheet

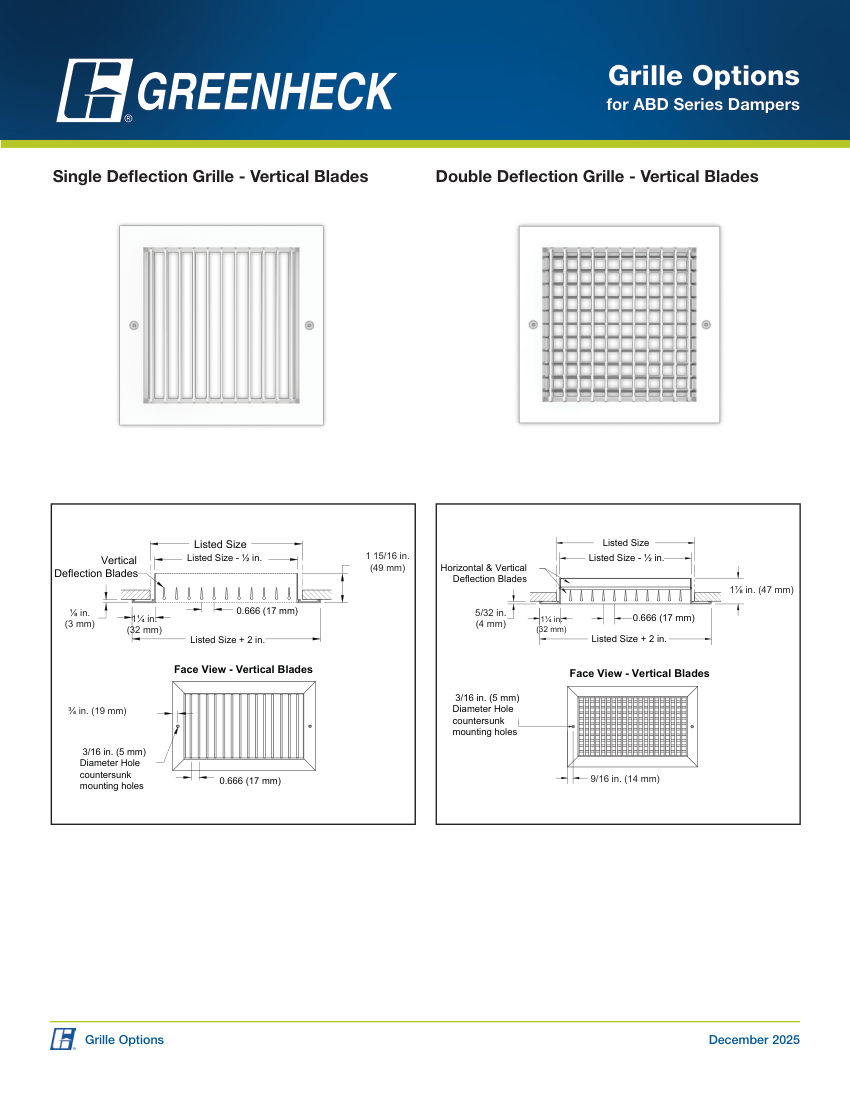

Greenheck grille options cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
grille options
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbergrille options
DescriptionGreenheck Grille Options (Dampers). Model ABD Series. Available in Single Deflection (Vertical Blades), Double Deflection (Vertical/Horizontal Blades), and Return/Exhaust (Surface Mount) styles; Single Deflection grille depth is 1 15/16 in. (49 mm); Double Deflection grille depth is 1 7/8 in. (47 mm); Return/Exhaust grille depth is 1 1/4 in. (32 mm). mounting: Countersunk mounting holes
DimensionsSingle Deflection: Listed Size - 1/2 in. (49 mm)
Double DeflectionListed Size - 1/2 in. (47 mm)
Return/ExhaustListed Size - 3/8 in.
