DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckgrille tab options

Greenheck Grille Tab Option (Damper Accessories). Model R8. Compatible with DFD, FD, FSD, and SMD series dampers; Tabs are 3/4 in. x 2 in. (19 mm x 51 mm); Made of 20 ga. (1 mm) galvanized steel; Flanges are concealed when grille is installed. material: 20 ga. (1 mm) galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFgrille-tab-options.pdfData sheet

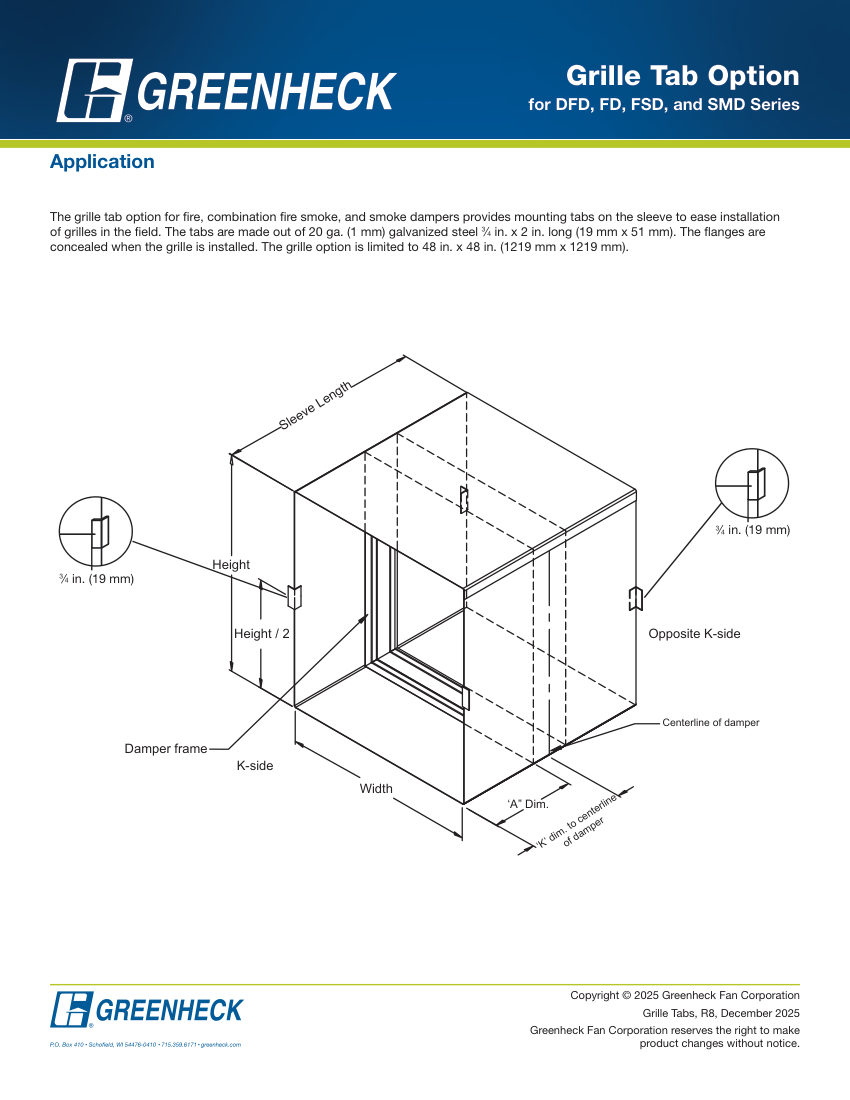

Greenheck grille tab options cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
grille tab options
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbergrille tab options
DescriptionGreenheck Grille Tab Option (Damper Accessories). Model R8. Compatible with DFD, FD, FSD, and SMD series dampers; Tabs are 3/4 in. x 2 in. (19 mm x 51 mm); Made of 20 ga. (1 mm) galvanized steel; Flanges are concealed when grille is installed. material: 20 ga. (1 mm) galvanized steel
Connection sizeUp to 48 in. x 48 in. (1219 mm x 1219 mm)
FinishGalvanized
MountingSleeve mounting tabs
Dimensions3/4 in. x 2 in. (19 mm x 51 mm) tabs.
