Greenheckhb-110 industrial backdraft damperhb-110

Greenheck Industrial Backdraft Damper (HVAC Dampers). Model HB-110. Double flanged galvanized steel channel frame; Extruded aluminum blades with vinyl seals; External heavy duty linkage with ball bearings; Temperature range -20° to 180°F (-29° to 82°C). material: Galvanized steel frame, extruded aluminum blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhb-110.pdfData sheet

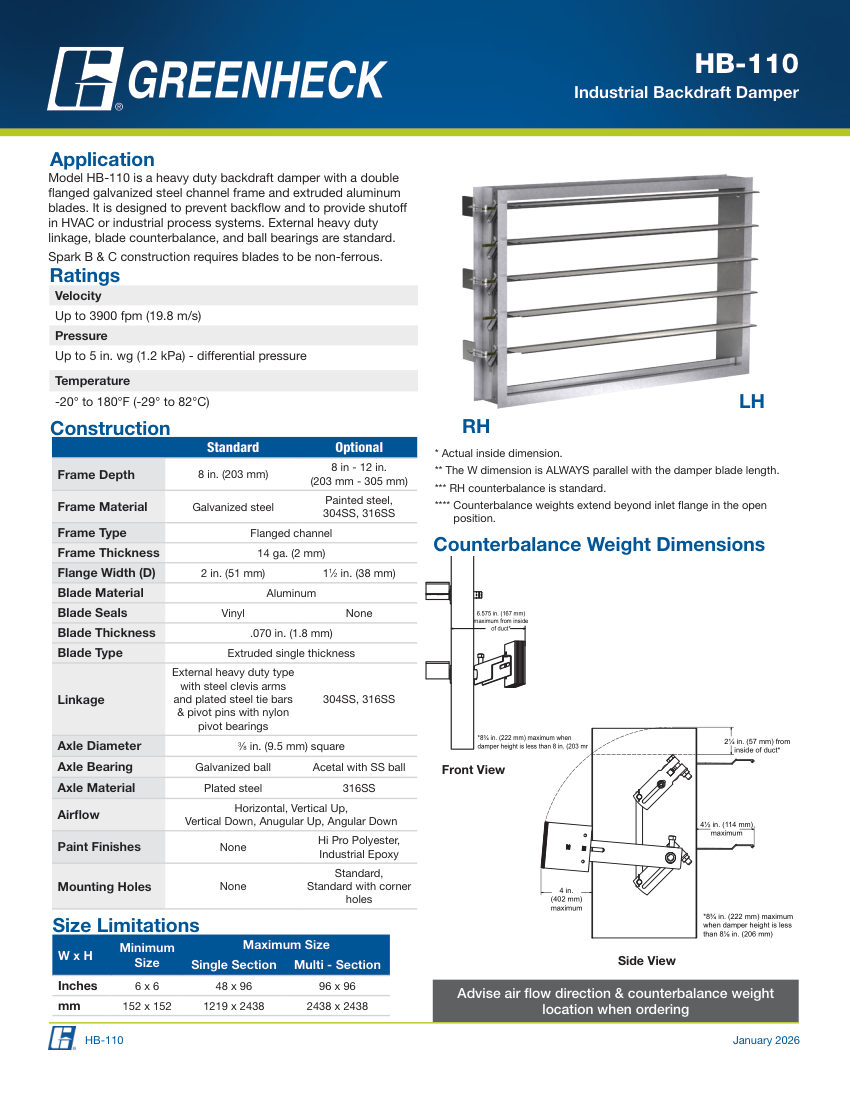

Greenheck hb-110 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hb-110
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhb-110
DescriptionGreenheck Industrial Backdraft Damper (HVAC Dampers). Model HB-110. Double flanged galvanized steel channel frame; Extruded aluminum blades with vinyl seals; External heavy duty linkage with ball bearings; Temperature range -20° to 180°F (-29° to 82°C). material: Galvanized steel frame, extruded aluminum blades
Connection size6x6 in. to 96x96 in.
End connectionFlanged channel
Pressure RatingUp to 5 in. wg (1.2 kPa) differential
Flow RateUp to 3900 fpm (19.8 m/s)
FinishGalvanized, Painted steel, 304SS, 316SS, Hi Pro Polyester, Industrial Epoxy.
