Greenheckhb-230 industrial backdraft damperhb-230
Greenheck Industrial Backdraft Damper (Damper). Model HB-230. Double flanged galvanized steel channel frame; Double thickness fabricated airfoil blades; External heavy duty linkage with ball bearings; Temperature range -20° to 250°F (-29° to 121°C). material: Galvanized steel frame, Galvanized steel blades
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- hb-230
- Product type
- Dampers
- MasterFormat
- 23

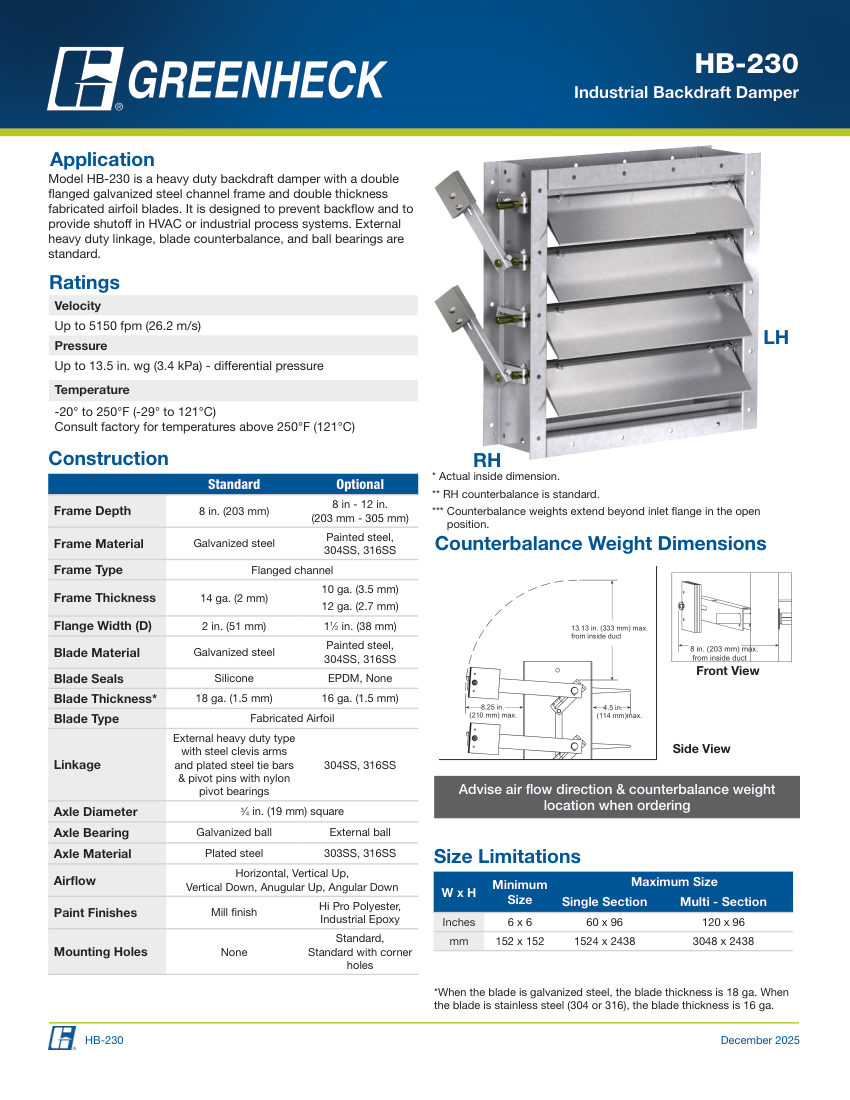

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | hb-230 |
|---|---|
| Description | Greenheck Industrial Backdraft Damper (Damper). Model HB-230. Double flanged galvanized steel channel frame; Double thickness fabricated airfoil blades; External heavy duty linkage with ball bearings; Temperature range -20° to 250°F (-29° to 121°C). material: Galvanized steel frame, Galvanized steel blades |
| Connection size | 6x6 in to 120x96 in (multi-section) |
| End connection | Flanged channel |
| Pressure Rating | Up to 13.5 in. wg (3.4 kPa) |
| Flow Rate | Up to 5150 fpm (26.2 m/s) |
| Finish | Mill finish. |
