DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhb-330 industrial backdraft damperhb-330

Greenheck Industrial Backdraft Damper (Damper). Model HB-330. Double thickness fabricated airfoil blades; External heavy duty linkage with steel clevis arms; Blade counterbalance and ball bearings standard; Operating temperature range -40° to 250°F (-40° to 121°C). material: Galvanized steel frame and blades; optional 304SS/316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhb-330.pdfData sheet

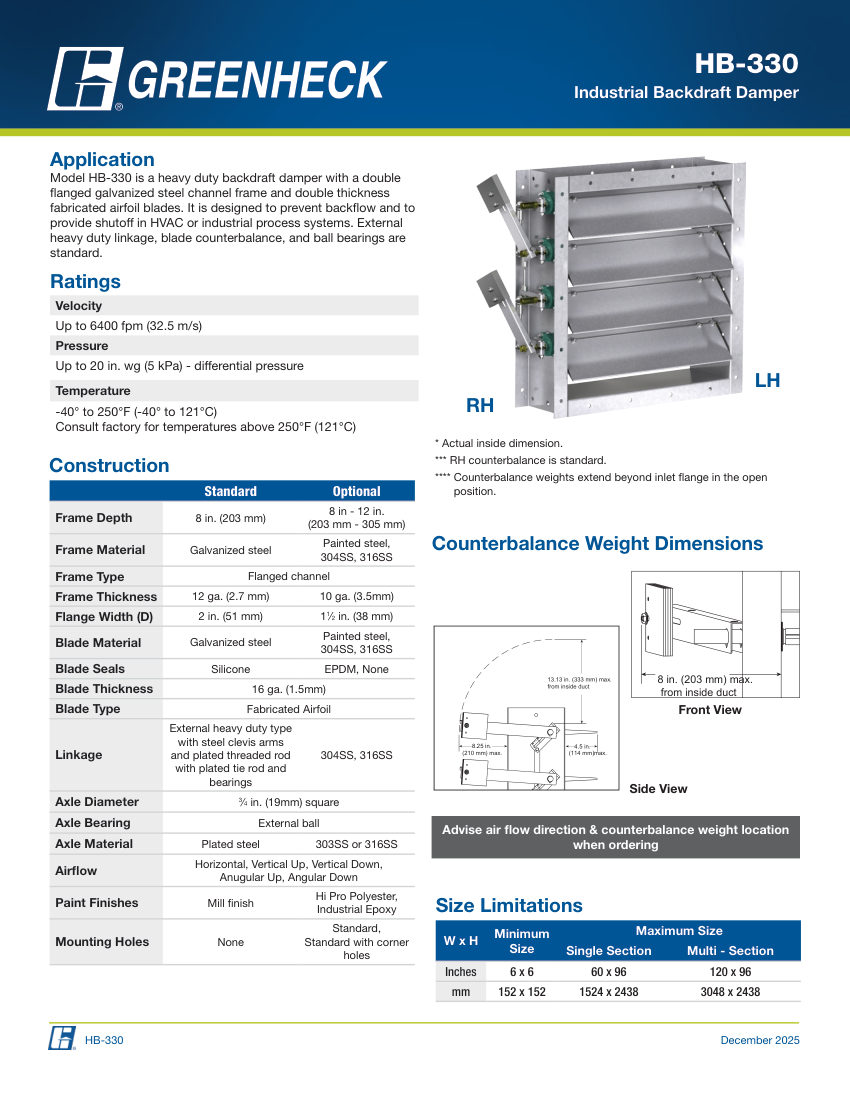

Greenheck hb-330 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hb-330
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhb-330
DescriptionGreenheck Industrial Backdraft Damper (Damper). Model HB-330. Double thickness fabricated airfoil blades; External heavy duty linkage with steel clevis arms; Blade counterbalance and ball bearings standard; Operating temperature range -40° to 250°F (-40° to 121°C). material: Galvanized steel frame and blades; optional 304SS/316SS
Connection sizeMin 6x6 in (152x152 mm); Max Single 60x96 in (1524x2438 mm); Max Multi 120x96 in (3048x2438 mm)
End connectionDouble flanged channel
Pressure RatingUp to 20 in. wg (5 kPa) differential
Flow RateUp to 6400 fpm (32.5 m/s)
FinishMill finish, Hi
