Greenheckhbr-050 round industrial backdraft damperhbr-050

Greenheck Round Industrial Backdraft Damper (Damper). Model HBR-050. Light duty round industrial backdraft damper; Allows air intake for draft relief or prevents backflow; Maximum operating temperature 250°F (121°C); Round blade type with galvanized steel ball axle bearings. material: Galvanized steel (Standard), 304SS/316SS (Optional)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhbr-050.pdfData sheet

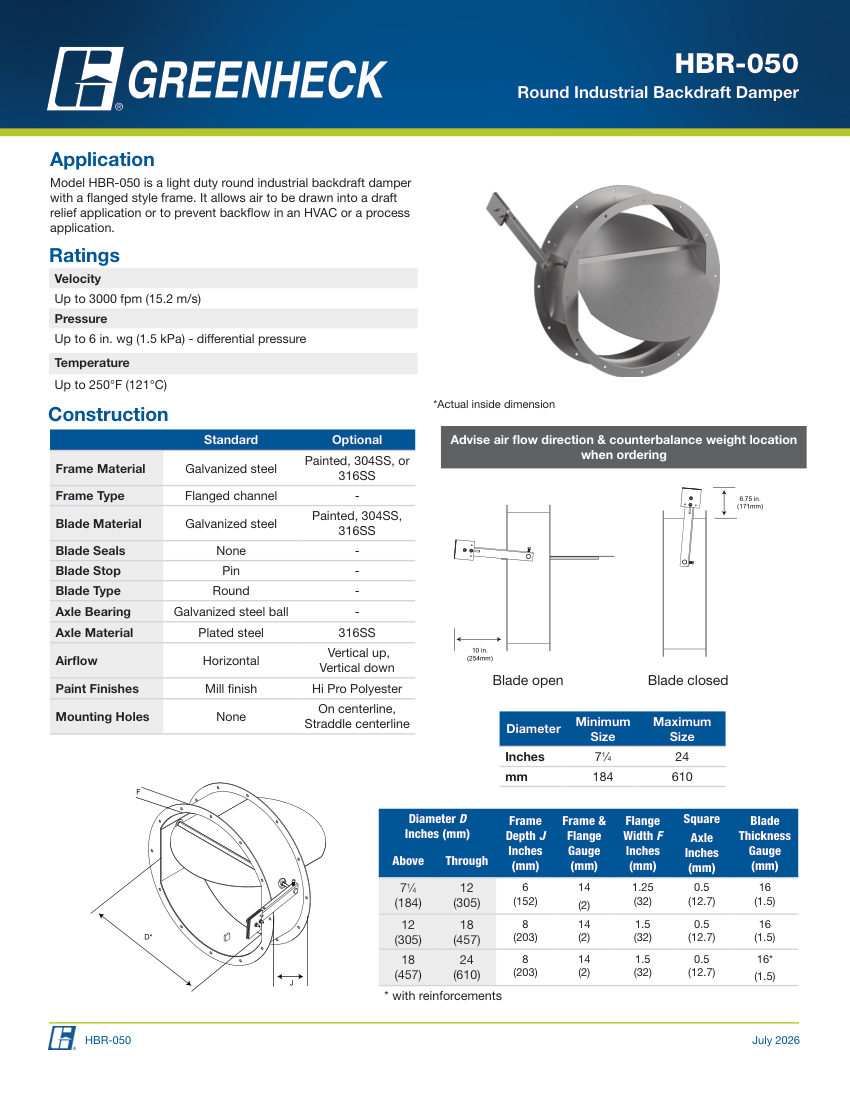

Greenheck hbr-050 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hbr-050
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhbr-050
DescriptionGreenheck Round Industrial Backdraft Damper (Damper). Model HBR-050. Light duty round industrial backdraft damper; Allows air intake for draft relief or prevents backflow; Maximum operating temperature 250°F (121°C); Round blade type with galvanized steel ball axle bearings. material: Galvanized steel (Standard), 304SS/316SS (Optional)
Connection size7.25 in. to 24 in. (184 mm to 610 mm)
End connectionFlanged channel
Pressure RatingUp to 6 in. wg (1.5 kPa) differential
Flow RateUp to 3000 fpm (15.2 m/s)
FinishMill finish (Standard), Hi Pro Polyester (Optional).
