DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhbr-150 round industrial backdraft damperhbr-150

Greenheck Round Industrial Backdraft Damper (Damper). Model HBR-150. Heavy duty round industrial backdraft damper; Allows air intake for draft relief or prevents backflow; Maximum operating temperature 250°F (121°C); Blade type is round with pin or rolled bar stops. material: Painted (Standard), 304SS or 316SS (Optional)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhbr-150.pdfData sheet

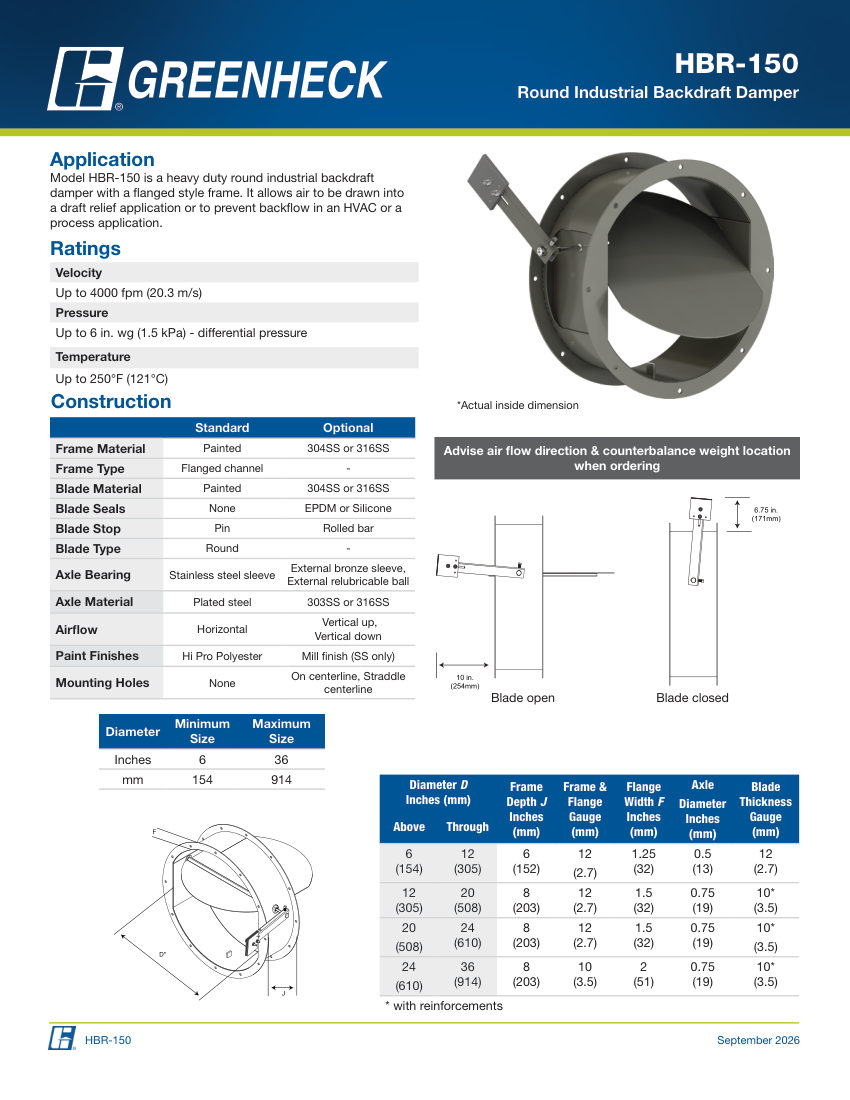

Greenheck hbr-150 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hbr-150
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhbr-150
DescriptionGreenheck Round Industrial Backdraft Damper (Damper). Model HBR-150. Heavy duty round industrial backdraft damper; Allows air intake for draft relief or prevents backflow; Maximum operating temperature 250°F (121°C); Blade type is round with pin or rolled bar stops. material: Painted (Standard), 304SS or 316SS (Optional)
Connection size6 to 36 inches (154 to 914 mm)
End connectionFlanged channel
Pressure RatingUp to 6 in. wg (1.5 kPa) differential
Flow RateUp to 4000 fpm (20.3 m/s)
FinishHi Pro Polyester (Standard), Mill finish (SS only).
