Greenheckhbs-330 heavy blast suppressor damperhbs-330
Greenheck Heavy Blast Suppressor Damper (Damper). Model HBS-330. Double thickness fabricated airfoil blades; Temperature range -40°F to 250°F (-40° to 121°C); Blade thickness 16 ga. (1.6mm); Frame thickness 10 ga. (3.5mm). material: Galvanized steel (Standard), 304SS/316SS (Optional)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- hbs-330
- Product type
- Dampers
- MasterFormat
- 23

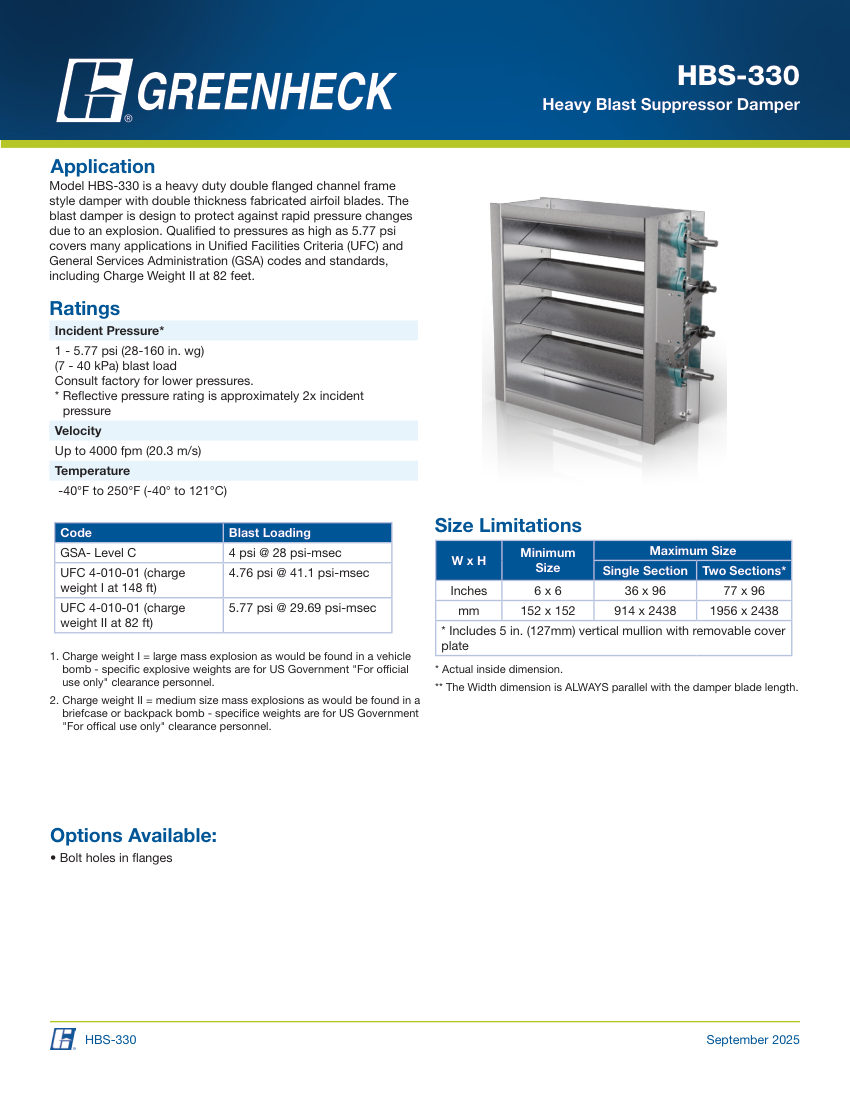

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | hbs-330 |
|---|---|
| Description | Greenheck Heavy Blast Suppressor Damper (Damper). Model HBS-330. Double thickness fabricated airfoil blades; Temperature range -40°F to 250°F (-40° to 121°C); Blade thickness 16 ga. (1.6mm); Frame thickness 10 ga. (3.5mm). material: Galvanized steel (Standard), 304SS/316SS (Optional) |
| Connection size | Min 6x6 in (152x152 mm), Max 36x96 in (914x2438 mm) single section |
| End connection | Double flanged channel frame |
| Pressure Rating | 1 - 5.77 psi (28-160 in. wg) incident pressure |
| Flow Rate | Up to 4000 fpm (20.3 m/s) |
| Finish | None (Standard), Hi Pro Polyester/Industrial Epoxy (Optional). |
