Greenheckhbs-430 heavy blast suppressor damperhbs-430
Greenheck Heavy Blast Suppressor Damper (Blast Damper). Model HBS-430. Double thickness fabricated airfoil blades; Blade thickness 14 ga. (<=10 psi) or 12 ga. (>10 psi); Temperature range -40°F to 250°F (-40° to 121°C); Axle diameter 1 in (25 mm) with external ball bearings. material: Galvanized steel (Standard), 304SS/316SS (Optional)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- hbs-430
- Product type
- Dampers
- MasterFormat
- 23

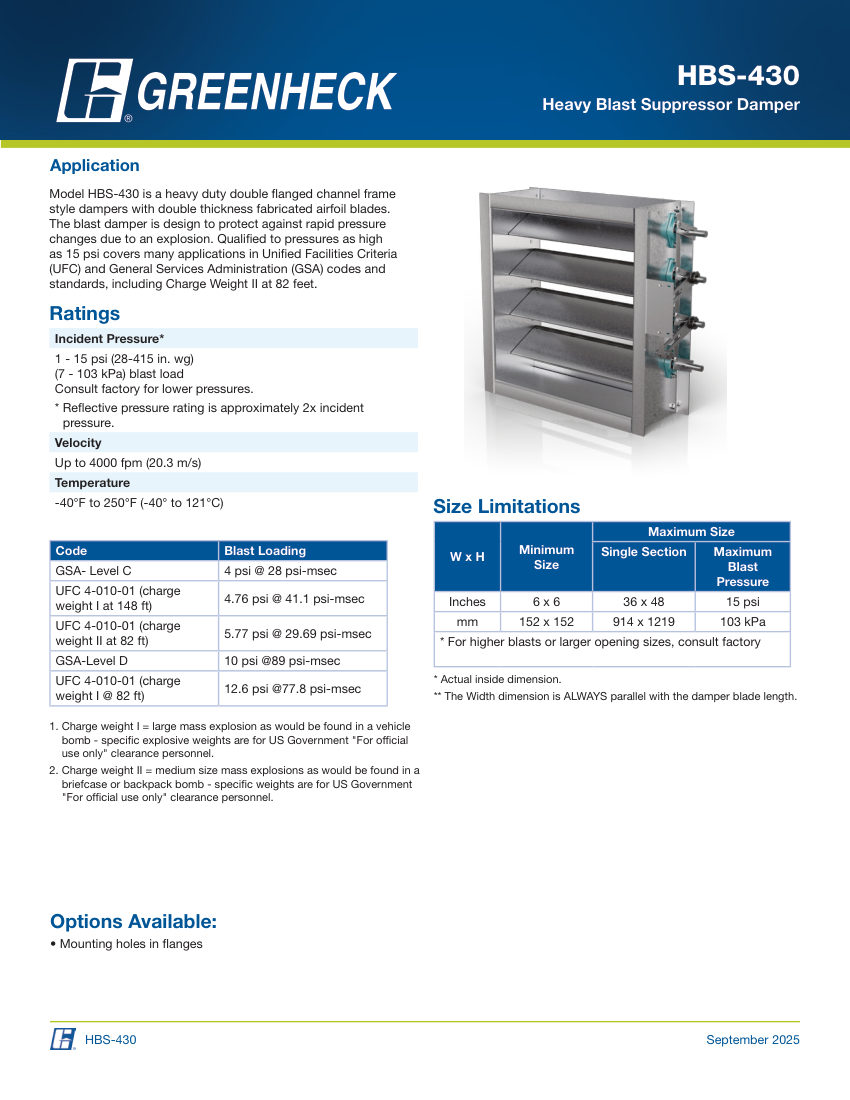

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | hbs-430 |
|---|---|
| Description | Greenheck Heavy Blast Suppressor Damper (Blast Damper). Model HBS-430. Double thickness fabricated airfoil blades; Blade thickness 14 ga. (<=10 psi) or 12 ga. (>10 psi); Temperature range -40°F to 250°F (-40° to 121°C); Axle diameter 1 in (25 mm) with external ball bearings. material: Galvanized steel (Standard), 304SS/316SS (Optional) |
| Connection size | Min 6x6 in (152x152 mm), Max 36x48 in (914x1219 mm) |
| End connection | Double flanged channel frame |
| Pressure Rating | 1-15 psi (28-415 in. wg) incident pressure |
| Flow Rate | Up to 4000 fpm (20.3 m/s) |
| Finish | None (Standard), Hi Pro Polyester/Industri |
