Greenheckhbt-221 bubble tight isolation damperhbt-221
Greenheck Bubble Tight Isolation Damper (Dampers). Model HBT-221. Bubble tight leakage performance per AMCA 500-D; Operating temperature range -40 to 250°F (-40 to 121°C); Blade seals are silicone and mechanically fastened; Frame and blade thickness 12 ga. (2.7 mm). material: Painted steel (Standard), 304SS/316SS (Optional)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- hbt-221
- Product type
- Dampers
- MasterFormat
- 23

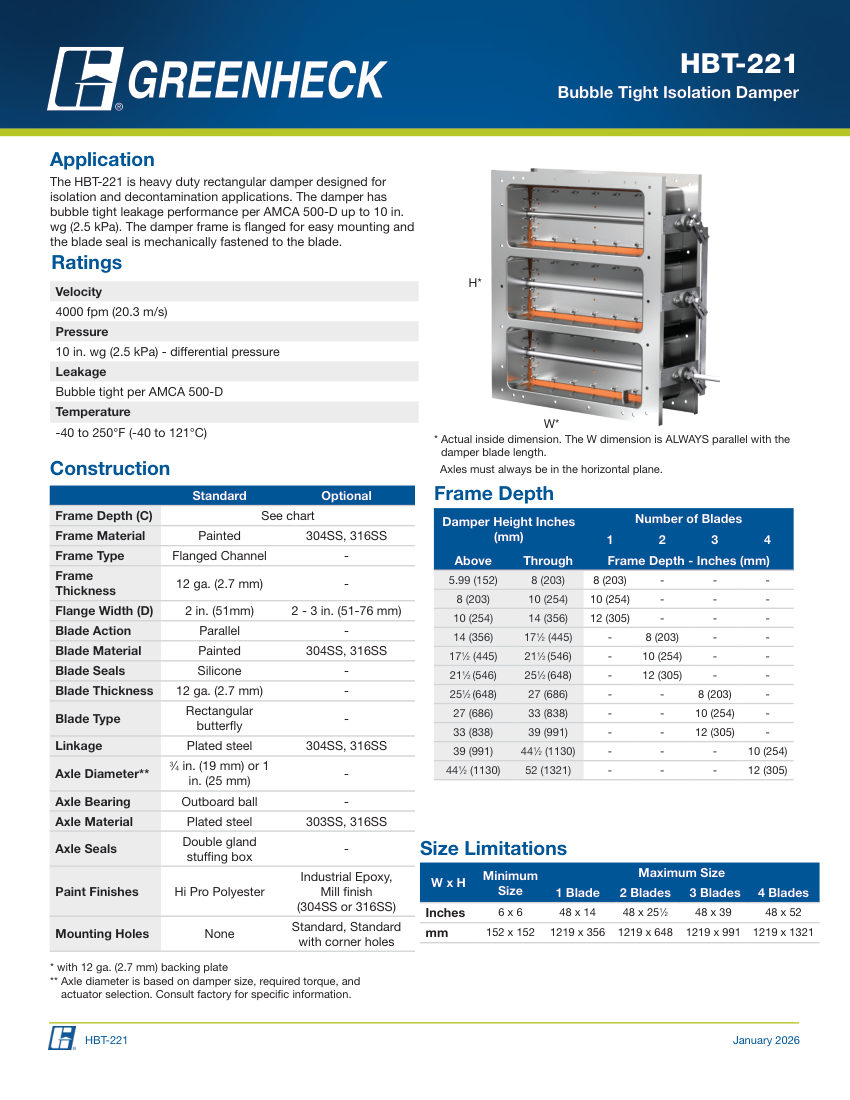

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | hbt-221 |
|---|---|
| Description | Greenheck Bubble Tight Isolation Damper (Dampers). Model HBT-221. Bubble tight leakage performance per AMCA 500-D; Operating temperature range -40 to 250°F (-40 to 121°C); Blade seals are silicone and mechanically fastened; Frame and blade thickness 12 ga. (2.7 mm). material: Painted steel (Standard), 304SS/316SS (Optional) |
| Connection size | Flanged |
| End connection | Flanged Channel |
| Pressure Rating | 10 in. wg (2.5 kPa) differential |
| Flow Rate | 4000 fpm (20.3 m/s) velocity |
| Finish | Painted (Industrial Epoxy, Hi Pro Polyester) or Mill finish. |
