Greenheckhbtr-151 bubble tight isolation damperhbtr-151

Greenheck Bubble Tight Isolation Damper (Isolation Damper). Model HBTR-151. Bubble tight leakage per AMCA 500-D up to 10 in. wg; Round butterfly blade with field removable silicone rubber seals; Temperature range -40 to 250°F (-40 to 121°C); Relubricable ball bearings with outboard mounting. material: Painted, 304SS, 316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhbtr-151.pdfData sheet

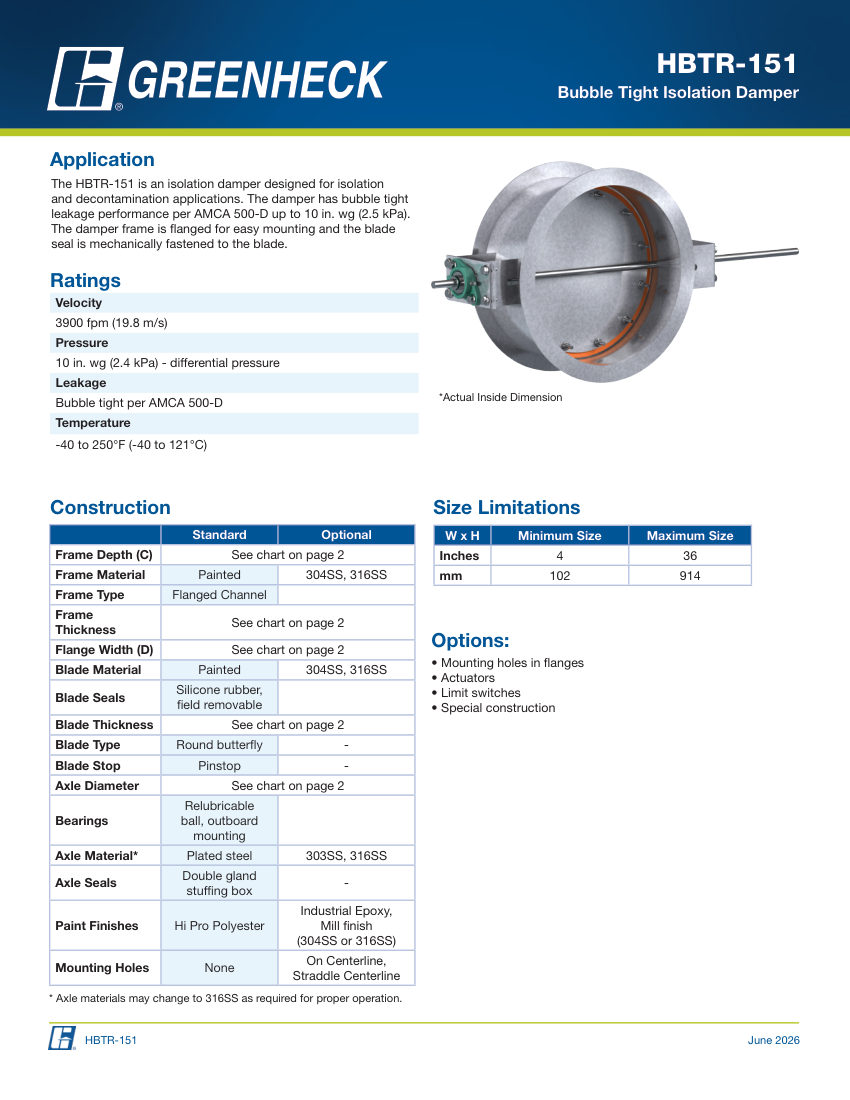

Greenheck hbtr-151 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hbtr-151
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhbtr-151
DescriptionGreenheck Bubble Tight Isolation Damper (Isolation Damper). Model HBTR-151. Bubble tight leakage per AMCA 500-D up to 10 in. wg; Round butterfly blade with field removable silicone rubber seals; Temperature range -40 to 250°F (-40 to 121°C); Relubricable ball bearings with outboard mounting. material: Painted, 304SS, 316SS
Connection size4 to 36 in (102 to 914 mm)
End connectionFlanged Channel
Pressure Rating10 in. wg (2.4 kPa) differential
Flow Rate3900 fpm (19.8 m/s)
FinishIndustrial Epoxy, Hi Pro Polyester, Mill finish.
