DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhbtr-451 bubble tight isolation damperhbtr-451

Greenheck Isolation Damper (Dampers). Model HBTR-451. Bubble tight leakage performance per AMCA 500-D; Velocity rating of 6500 fpm (33 m/s); Temperature range of -40 to 250°F (-40 to 121°C); Butterfly blade type with field replaceable seals. material: Painted steel, 304SS, 316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhbtr-451.pdfData sheet

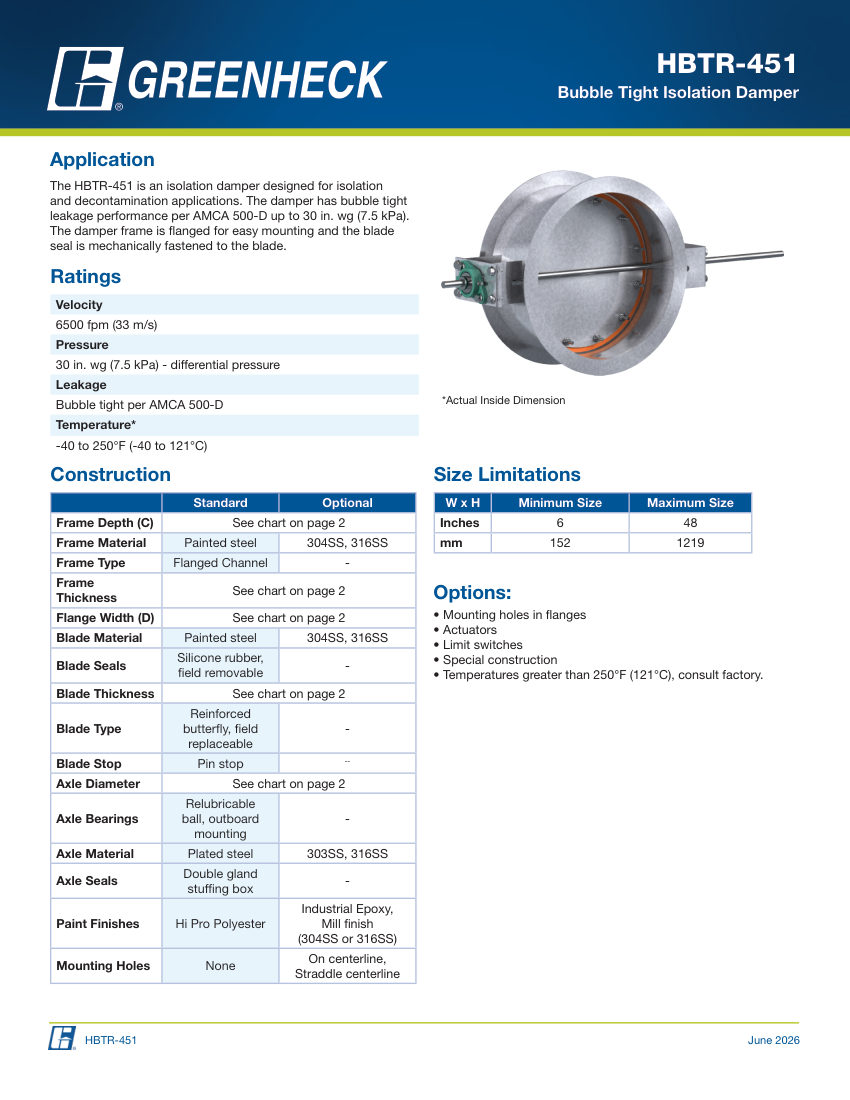

Greenheck hbtr-451 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hbtr-451
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhbtr-451
DescriptionGreenheck Isolation Damper (Dampers). Model HBTR-451. Bubble tight leakage performance per AMCA 500-D; Velocity rating of 6500 fpm (33 m/s); Temperature range of -40 to 250°F (-40 to 121°C); Butterfly blade type with field replaceable seals. material: Painted steel, 304SS, 316SS
Connection size6 to 48 inches (152 to 1219 mm)
End connectionFlanged
Pressure Rating30 in. wg (7.5 kPa)
FinishHi Pro Polyester, Industrial Epoxy, Mill finish
MountingFlanged.
