Greenheckhbtr-551 bubble tight isolation damperhbtr-551
Greenheck Bubble Tight Isolation Damper (Dampers). Model HBTR-551. Bubble tight leakage per AMCA 500-D up to 40 in. wg; Temperature range -40 to 250°F (-40 to 121°C); Butterfly blade with field removable silicone rubber seals; Outboard ball bearings with double gland stuffing box axle seals. material: Painted steel, 304SS, 316SS
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- hbtr-551
- Product type
- Dampers
- MasterFormat
- 23

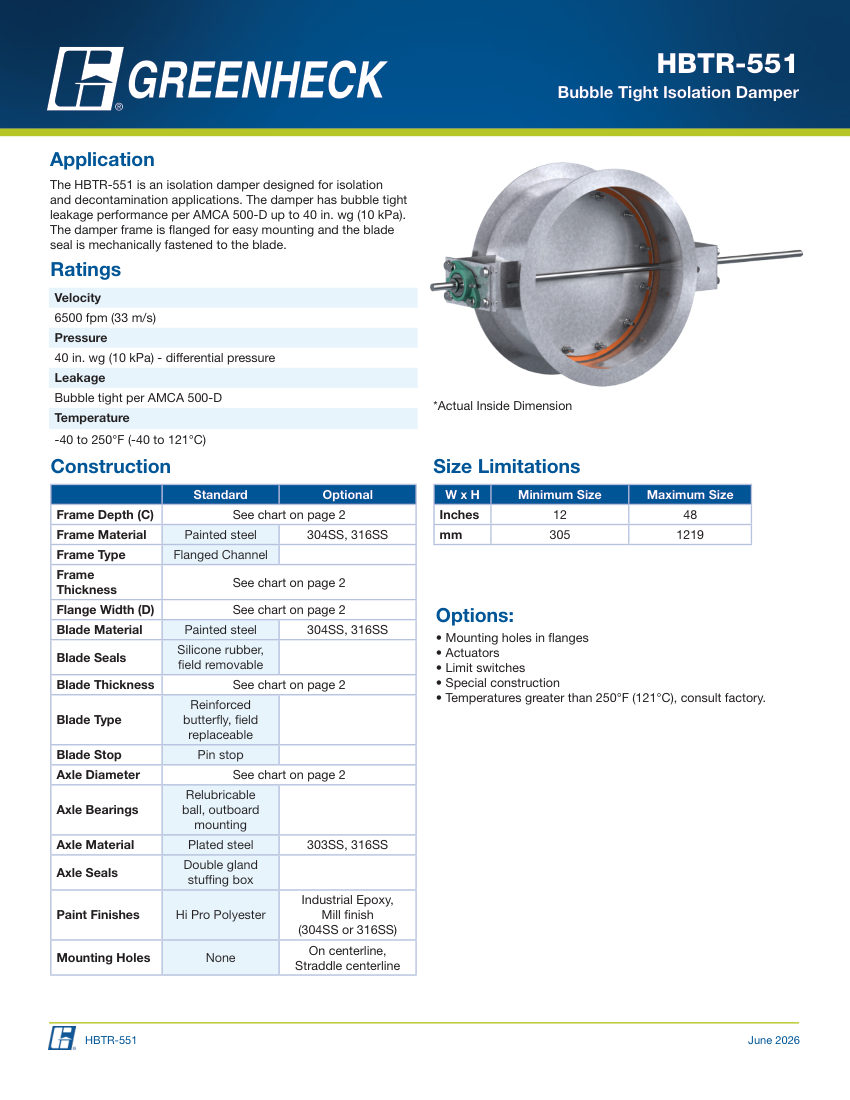

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | hbtr-551 |
|---|---|
| Description | Greenheck Bubble Tight Isolation Damper (Dampers). Model HBTR-551. Bubble tight leakage per AMCA 500-D up to 40 in. wg; Temperature range -40 to 250°F (-40 to 121°C); Butterfly blade with field removable silicone rubber seals; Outboard ball bearings with double gland stuffing box axle seals. material: Painted steel, 304SS, 316SS |
| Connection size | 6 to 48 in (152 to 1219 mm) |
| End connection | Flanged Channel |
| Pressure Rating | 40 in. wg (10 kPa) differential |
| Flow Rate | 6500 fpm (33 m/s) |
| Finish | Hi Pro Polyester, Industrial Epoxy, Mill finish. |
