Greenheckhcd-120 industrial control damperhcd-120

Greenheck Industrial Control Damper. Model HCD-120. Heavy duty industrial control damper with flanged frame; Available with parallel or opposed blade action; Temperature range -40° to 400°F (-40° to 204°C); Blade material options include galvanized steel, 304SS, and 316SS. material: Galvanized steel, 304SS, 316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-120.pdfData sheet

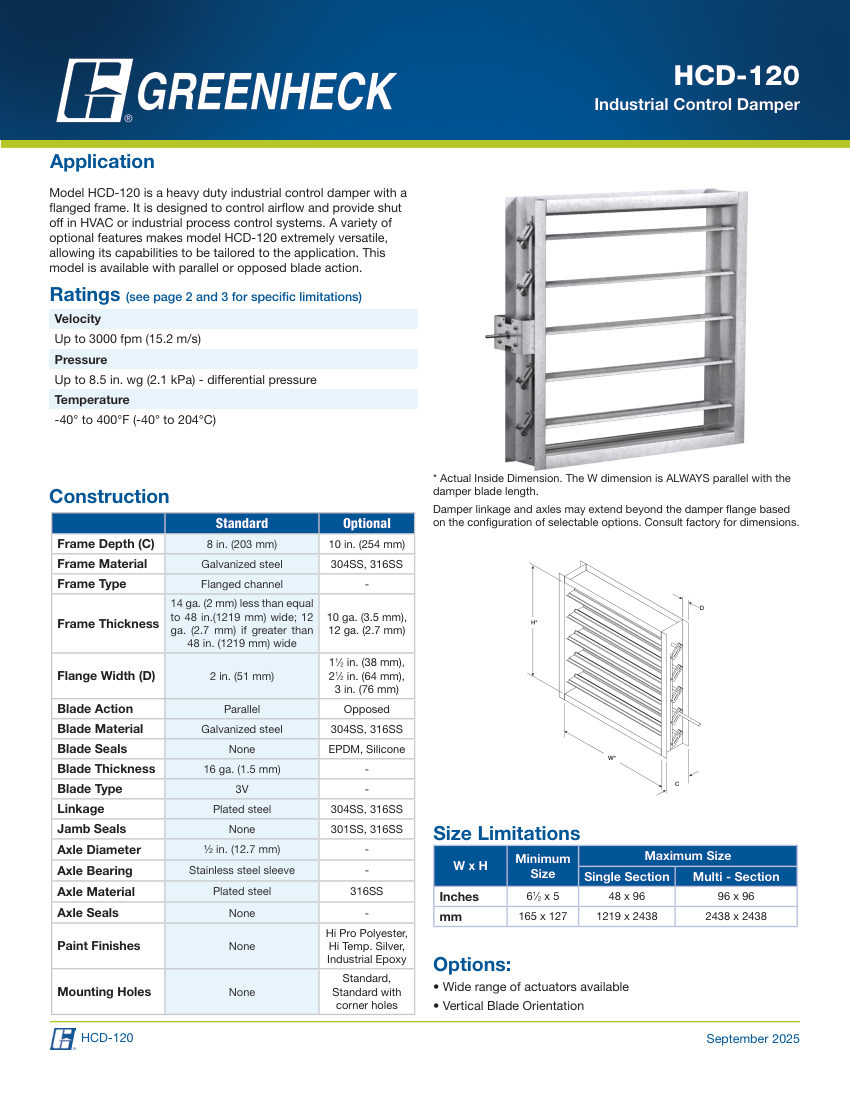

Greenheck hcd-120 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-120
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-120
DescriptionGreenheck Industrial Control Damper. Model HCD-120. Heavy duty industrial control damper with flanged frame; Available with parallel or opposed blade action; Temperature range -40° to 400°F (-40° to 204°C); Blade material options include galvanized steel, 304SS, and 316SS. material: Galvanized steel, 304SS, 316SS
Connection sizeMin 6.5x5 in (165x127 mm), Max 48x96 in (1219x2438 mm) single section
End connectionFlanged channel
Pressure RatingUp to 8.5 in. wg (2.1 kPa) differential
Flow RateUp to 3000 fpm (15.2 m/s)
FinishNone, Hi Pro Polyester, Hi Temp. Silver, Industrial Epoxy.
