DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhcd-130 industrial control damperhcd-130

Greenheck Industrial Control Damper. Model HCD-130. Heavy duty industrial control damper with flanged frame; Available with parallel or opposed blade action

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-130.pdfData sheet

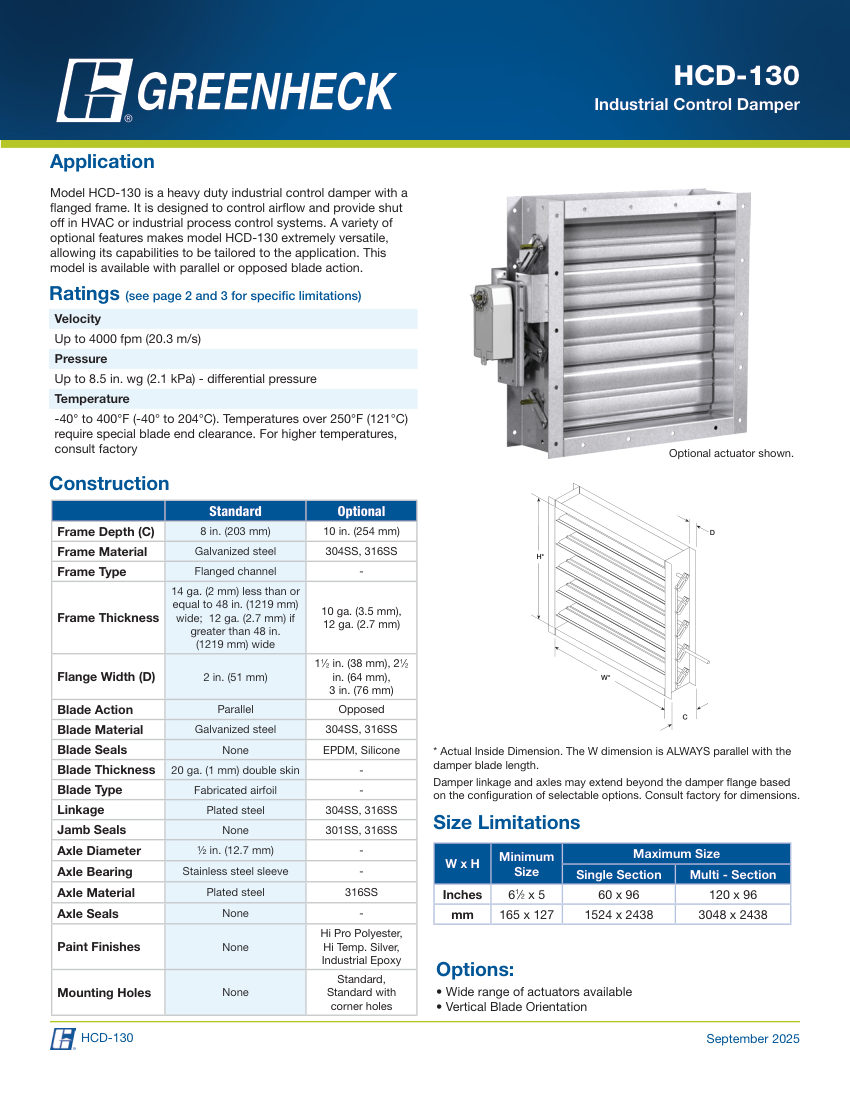

Greenheck hcd-130 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-130
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-130
DescriptionGreenheck Industrial Control Damper. Model HCD-130. Heavy duty industrial control damper with flanged frame; Available with parallel or opposed blade action
Temperature range-40° to 400°F (-40° to 204°C)
Blade materialGalvanized steel (Standard) or 304SS/316SS (Optional). material: Galvanized steel (Standard), 304SS/316SS (Optional)
Connection sizeMin 6.5x5 in (165x127 mm), Max 120x96 in (3048x2438 mm)
End connectionFlanged channel
Pressure RatingUp to 8.5 in. wg (2.1 kPa) differential
Flow RateUp to 4000 fpm (20.3 m/s)
FinishNone (Standard), Hi Pro Polyester/Hi Temp Silver/In
