DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhcd-130-le industrial lab exhaust damperhcd-130-le

Greenheck Industrial Lab Exhaust Damper (Industrial Control Damper). Model HCD-130-LE. Heavy duty flanged frame style with fabricated airfoil blades; Available with parallel (isolation) or opposed (bypass) blade action; Operating temperature range -40 to 250°F (-40 to 121°C); Blade seals made of silicone. material: Galvanized Steel (Standard), 304SS/316SS (Optional)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-130-le.pdfData sheet

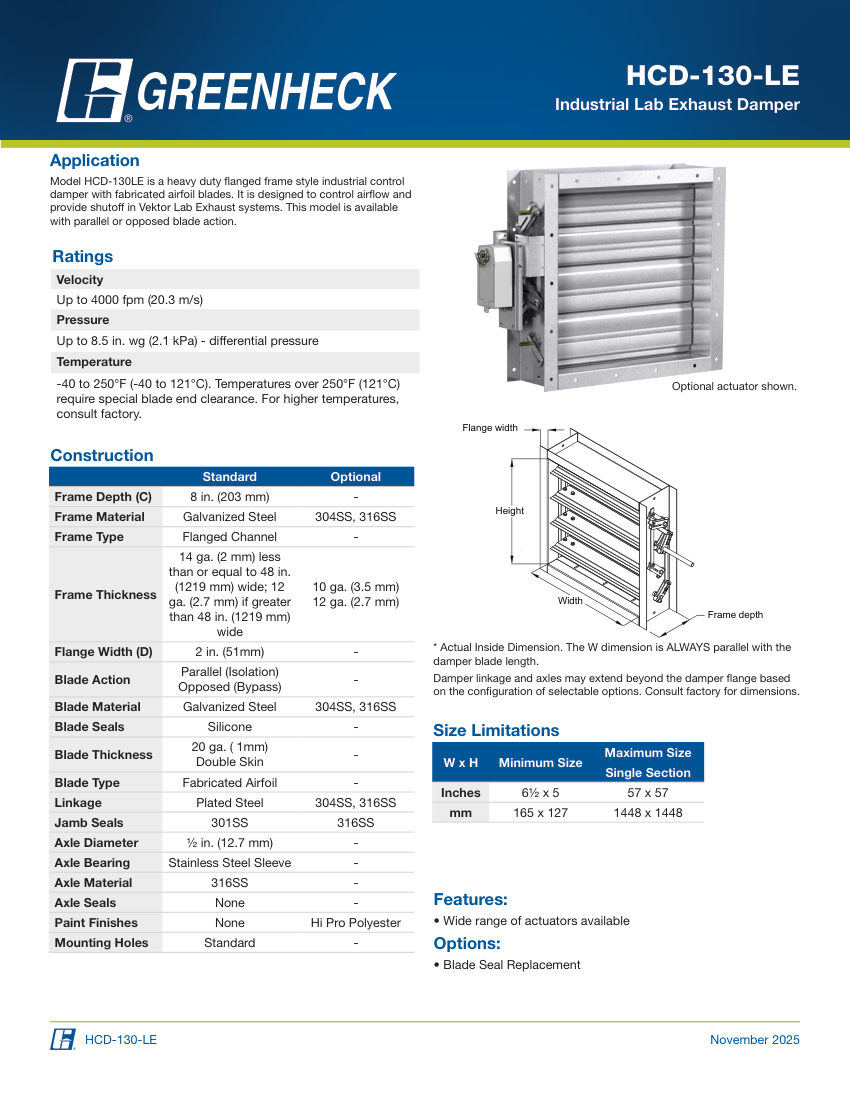

Greenheck hcd-130-le cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-130-le
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-130-le
DescriptionGreenheck Industrial Lab Exhaust Damper (Industrial Control Damper). Model HCD-130-LE. Heavy duty flanged frame style with fabricated airfoil blades; Available with parallel (isolation) or opposed (bypass) blade action; Operating temperature range -40 to 250°F (-40 to 121°C); Blade seals made of silicone. material: Galvanized Steel (Standard), 304SS/316SS (Optional)
Connection sizeMin 6.5x5 in (165x127 mm), Max 57x57 in (1448x1448 mm)
End connectionFlanged Channel
Pressure RatingUp to 8.5 in. wg (2.1 kPa) differential
Flow RateUp to 4000 fpm (20.3 m/s)
FinishNone (Standard), Hi Pro
