Greenheckhcd-135 industrial control damperhcd-135

Greenheck Industrial Control Damper. Model HCD-135. Heavy duty industrial control damper with flanged frame; Available with parallel or opposed blade action

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-135.pdfData sheet

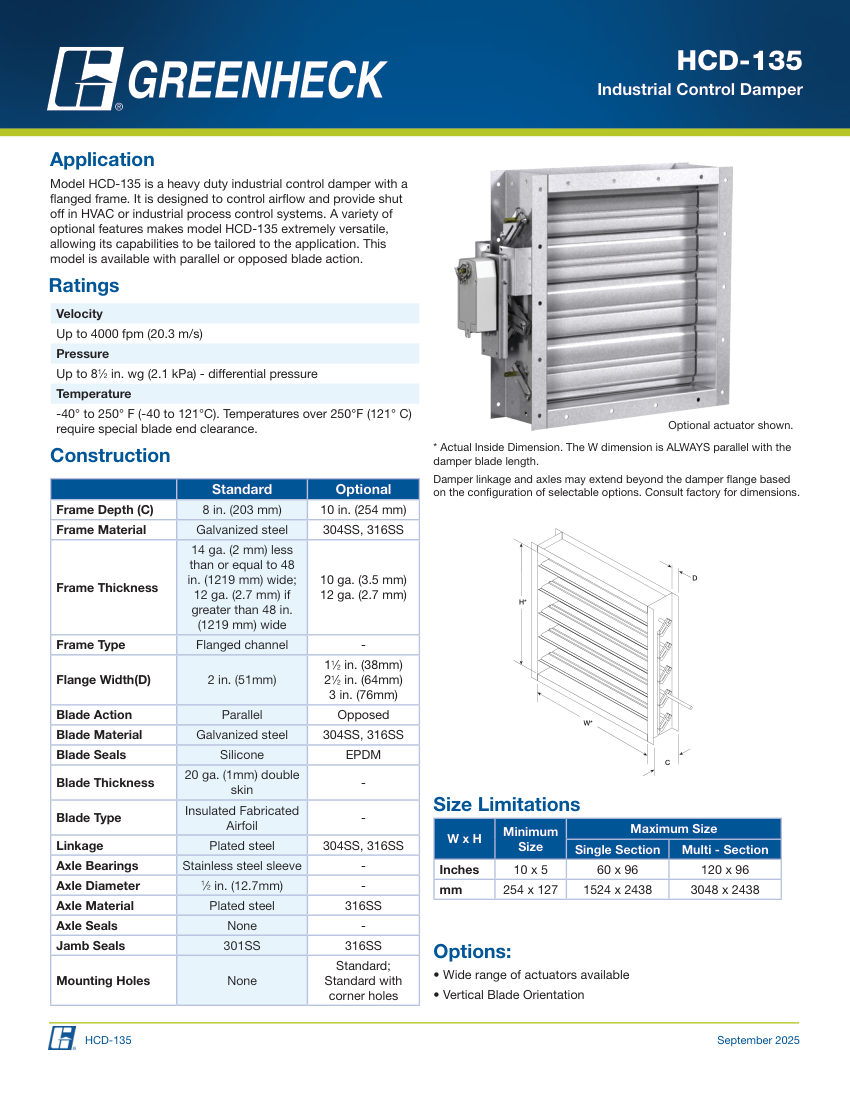

Greenheck hcd-135 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-135
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-135
DescriptionGreenheck Industrial Control Damper. Model HCD-135. Heavy duty industrial control damper with flanged frame; Available with parallel or opposed blade action
Temperature range-40° to 250° F (-40 to 121°C)
Blade materialGalvanized steel, 304SS, or 316SS. material: Galvanized steel, 304SS, 316SS
Connection sizeMin 10x5 in, Max 120x96 in
End connectionFlanged channel
Pressure RatingUp to 8.5 in. wg (2.1 kPa)
Flow RateUp to 4000 fpm (20.3 m/s)
MountingFlanged.
