DIV 23 · HVACDAMPERSCUT SHEET INDEXED

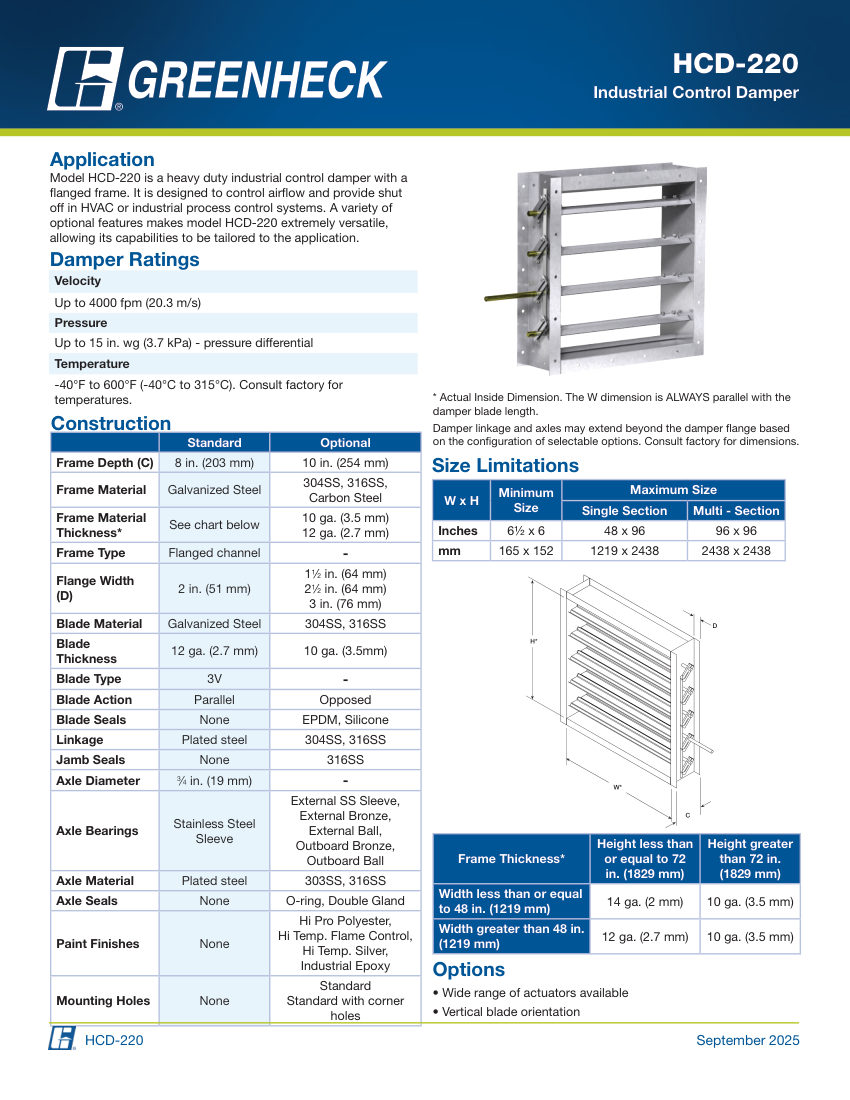

Greenheckhcd-220 industrial control damperhcd-220

Name: Greenheck hcd-220 industrial control damper
Brand: Greenheck
SKU: hcd-220

Greenheck Industrial Control Damper. Model HCD-220. Heavy duty industrial control damper with flanged frame

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	hcd-220
Description	Greenheck Industrial Control Damper. Model HCD-220. Heavy duty industrial control damper with flanged frame
Temperature range	-40°F to 600°F (-40°C to 315°C)
Blade types	3V, Parallel or Opposed action
Optional blade seals	EPDM or Silicone. material: Galvanized Steel (Standard), 304SS/316SS/Carbon Steel (Optional)
Connection size	Min 6.5x6 in, Max 96x96 in
End connection	Flanged
Pressure Rating	Up to 15 in. wg (3.7 kPa)
Flow Rate	Up to 4000 fpm (20.3 m/s)
Finish	None (Standard), Hi Pro Polyester/Industrial Epoxy (Optional).
