Greenheckhcd-230 industrial control damperhcd-230

Greenheck Industrial Control Damper. Model HCD-230. Heavy duty industrial control damper with flanged frame; Temperature range -40°F to 600°F (-40°C to 315°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-230.pdfData sheet

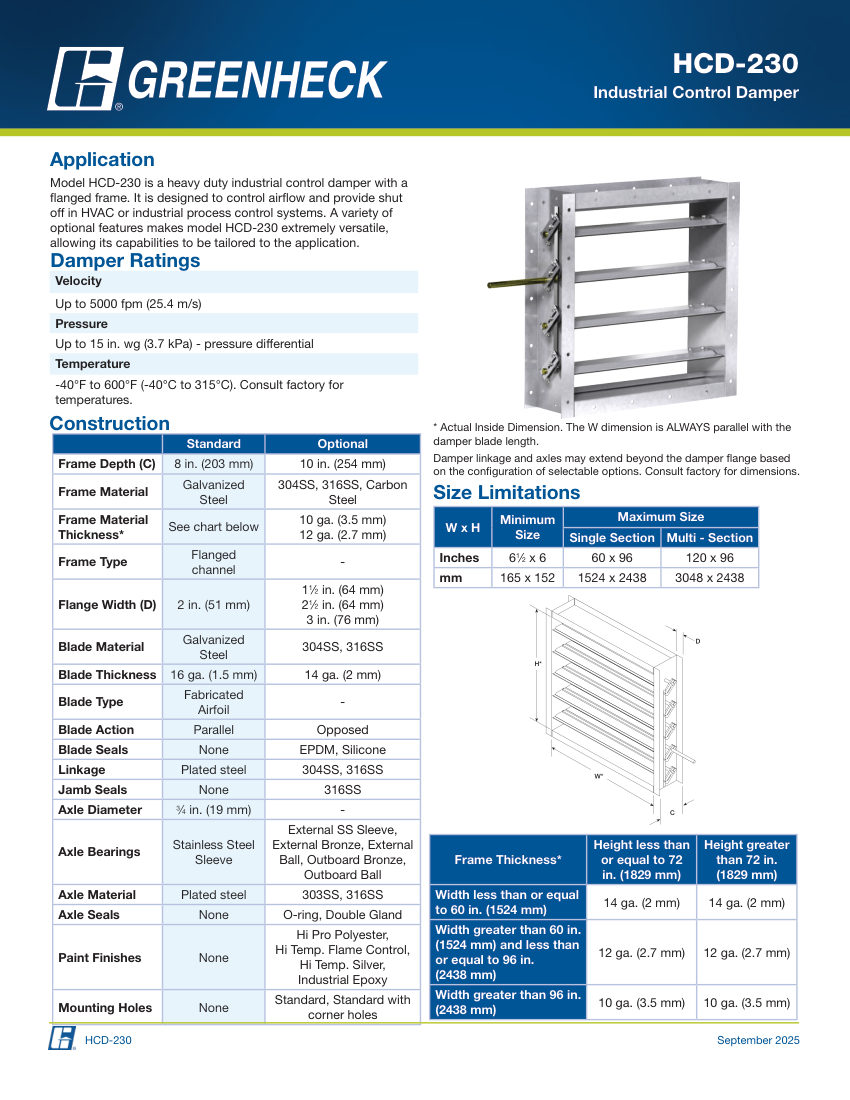

Greenheck hcd-230 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-230
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-230
DescriptionGreenheck Industrial Control Damper. Model HCD-230. Heavy duty industrial control damper with flanged frame; Temperature range -40°F to 600°F (-40°C to 315°C)
Blade action optionsParallel or Opposed
Blade material optionsGalvanized Steel, 304SS, 316SS. material: Galvanized Steel, 304SS, 316SS, Carbon Steel
Connection sizeMin 6.5x6 in, Max 120x96 in (Multi-Section)
End connectionFlanged
Pressure RatingUp to 15 in. wg (3.7 kPa)
Flow RateUp to 5000 fpm (25.4 m/s)
FinishNone, Standard, Industrial Epoxy, Hi Temp. Silver.
