DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhcd-230-le industrial lab exhaust damperhcd-230-le

Greenheck Industrial Lab Exhaust Damper (Industrial Damper). Model HCD-230-LE. Heavy duty flanged frame style with fabricated airfoil blades; Available with parallel (isolation) or opposed (bypass) blade action; Operating temperature range -40 to 250°F (-40 to 121°C); Blade thickness 16 ga (1.5 mm) with silicone seals. material: Galvanized Steel (Standard), 304SS/316SS (Optional)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-230-le.pdfData sheet

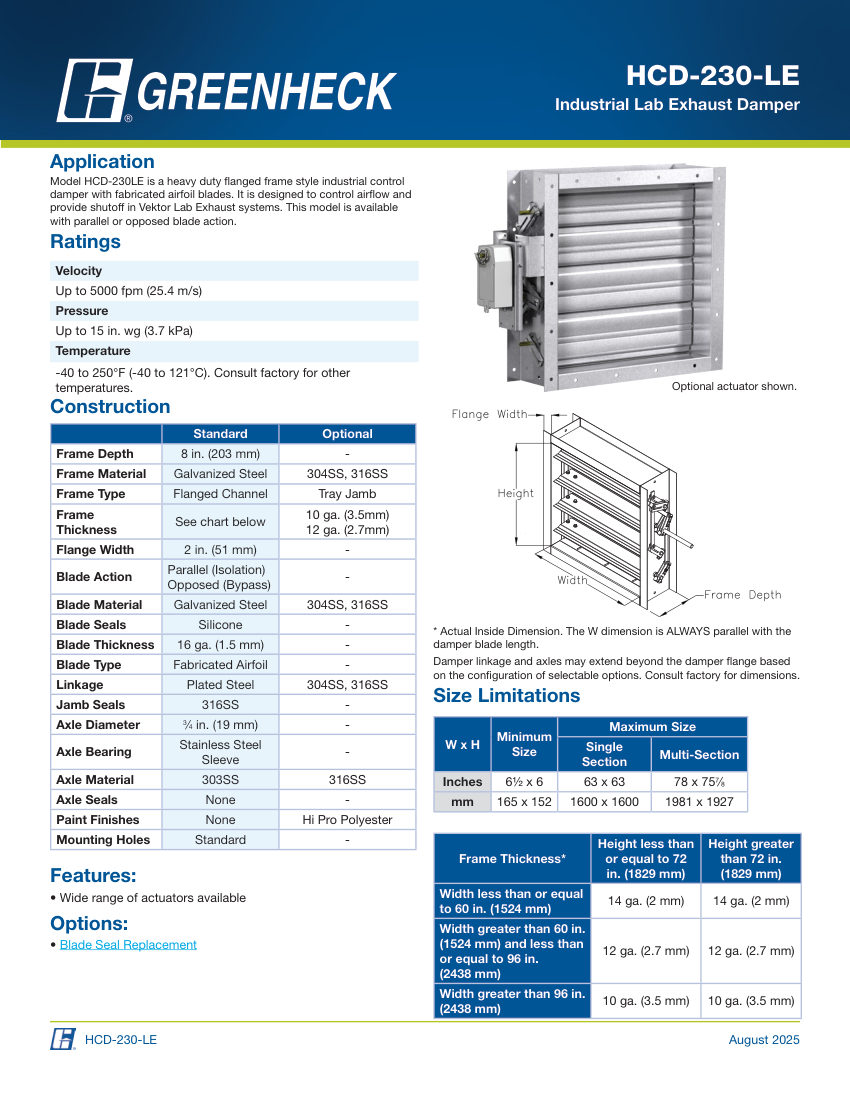

Greenheck hcd-230-le cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-230-le
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-230-le
DescriptionGreenheck Industrial Lab Exhaust Damper (Industrial Damper). Model HCD-230-LE. Heavy duty flanged frame style with fabricated airfoil blades; Available with parallel (isolation) or opposed (bypass) blade action; Operating temperature range -40 to 250°F (-40 to 121°C); Blade thickness 16 ga (1.5 mm) with silicone seals. material: Galvanized Steel (Standard), 304SS/316SS (Optional)
Connection sizeMin 6.5x6 in (165x152 mm), Max 78x75.875 in (1981x1927 mm)
End connectionFlanged Channel
Pressure RatingUp to 15 in. wg (3.7 kPa)
Flow RateUp to 5000 fpm (25.4 m/s)
FinishNone (Standard), Hi
