Greenheckhcd-430 industrial control damperhcd-430

Greenheck Industrial Control Damper (HVAC Dampers). Model HCD-430. Heavy duty industrial control damper with flanged frame; Designed for airflow control and shut off in HVAC or industrial process systems; Temperature range -40° to 600°F (-40° to 315°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-430.pdfData sheet

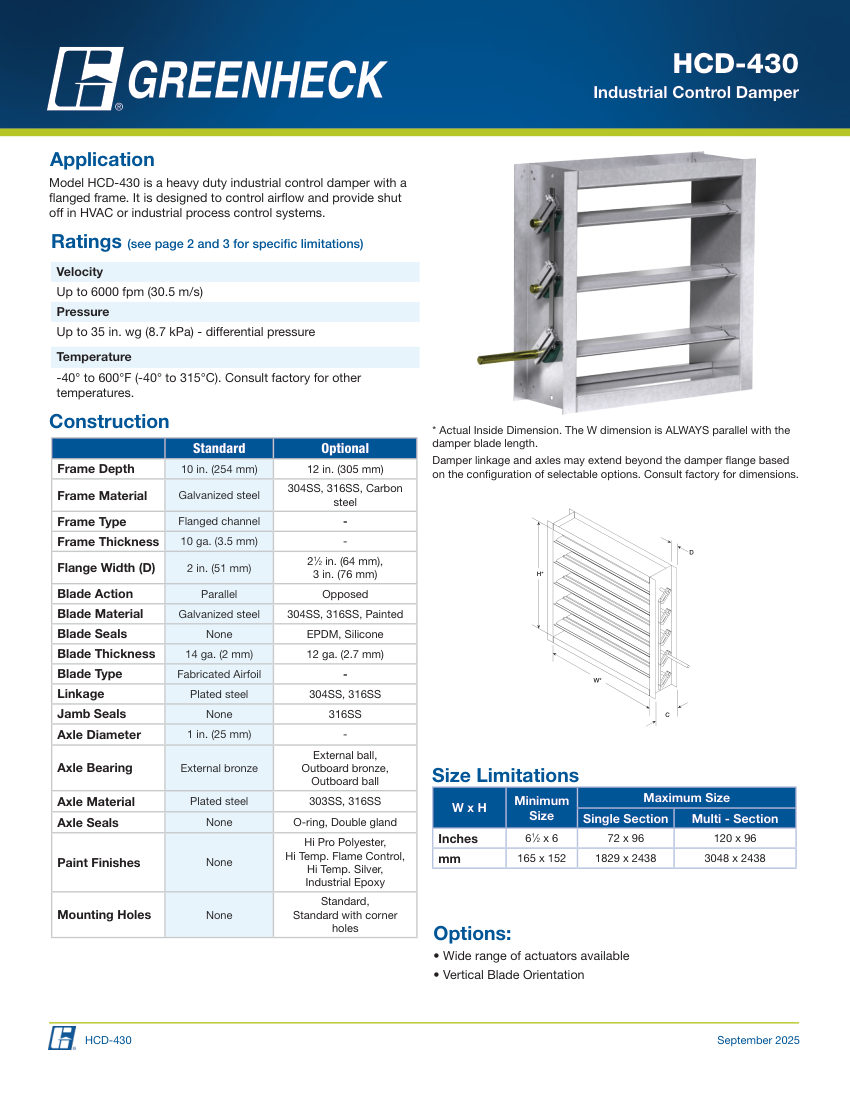

Greenheck hcd-430 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-430
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-430
DescriptionGreenheck Industrial Control Damper (HVAC Dampers). Model HCD-430. Heavy duty industrial control damper with flanged frame; Designed for airflow control and shut off in HVAC or industrial process systems; Temperature range -40° to 600°F (-40° to 315°C)
Blade action optionsParallel or Opposed. material: Galvanized steel, 304SS, 316SS, Carbon steel
Connection sizeMin 6.5x6 in (165x152 mm), Max 120x96 in (3048x2438 mm)
End connectionFlanged channel
Pressure RatingUp to 35 in. wg (8.7 kPa) differential
Flow RateUp to 6000 fpm (30.5 m/s)
FinishGalvanized, Painted, Hi Pro Polyester, Hi
