DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhcd-530 industrial control damperhcd-530

Greenheck Industrial Control Damper. Model HCD-530. Heavy duty industrial control damper with flanged frame; Designed for HVAC or industrial process control systems

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcd-530.pdfData sheet

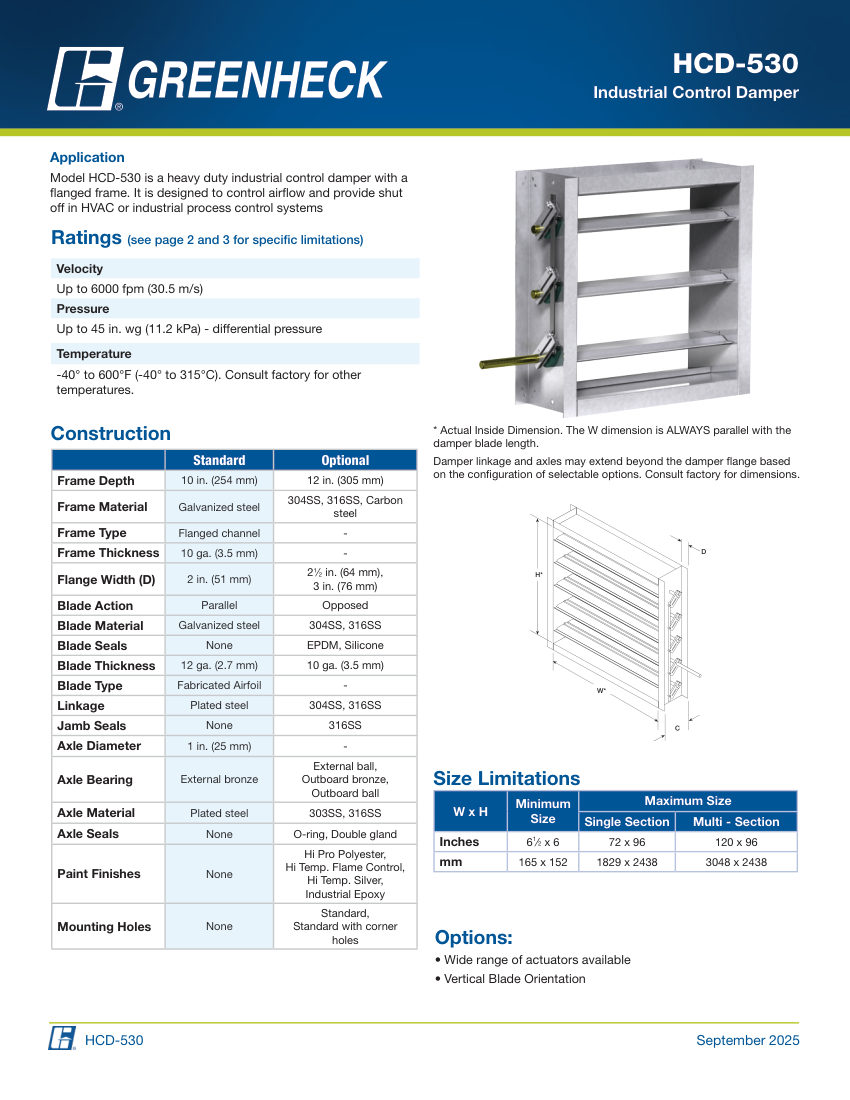

Greenheck hcd-530 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcd-530
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcd-530
DescriptionGreenheck Industrial Control Damper. Model HCD-530. Heavy duty industrial control damper with flanged frame; Designed for HVAC or industrial process control systems
Temperature range-40° to 600°F (-40° to 315°C)
Blade actionParallel (Standard) or Opposed (Optional). material: Galvanized steel (Standard), 304SS/316SS/Carbon steel (Optional)
Connection sizeMin 6.5x6 in (165x152 mm), Max Single 72x96 in (1829x2438 mm), Max Multi 120x96 in (3048x2438 mm)
End connectionFlanged channel
Pressure RatingUp to 45 in. wg (11.2 kPa) differential
Flow RateUp to 6000 fpm (30.5 m/s)
FinishNo
