Greenheckhcdr-050 round industrial control damperhcdr-050

Greenheck Round Industrial Control Damper (Control Damper). Model HCDR-050. Light duty round control damper with flanged style frame; Round butterfly blade type with pin stop

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcdr-050.pdfData sheet

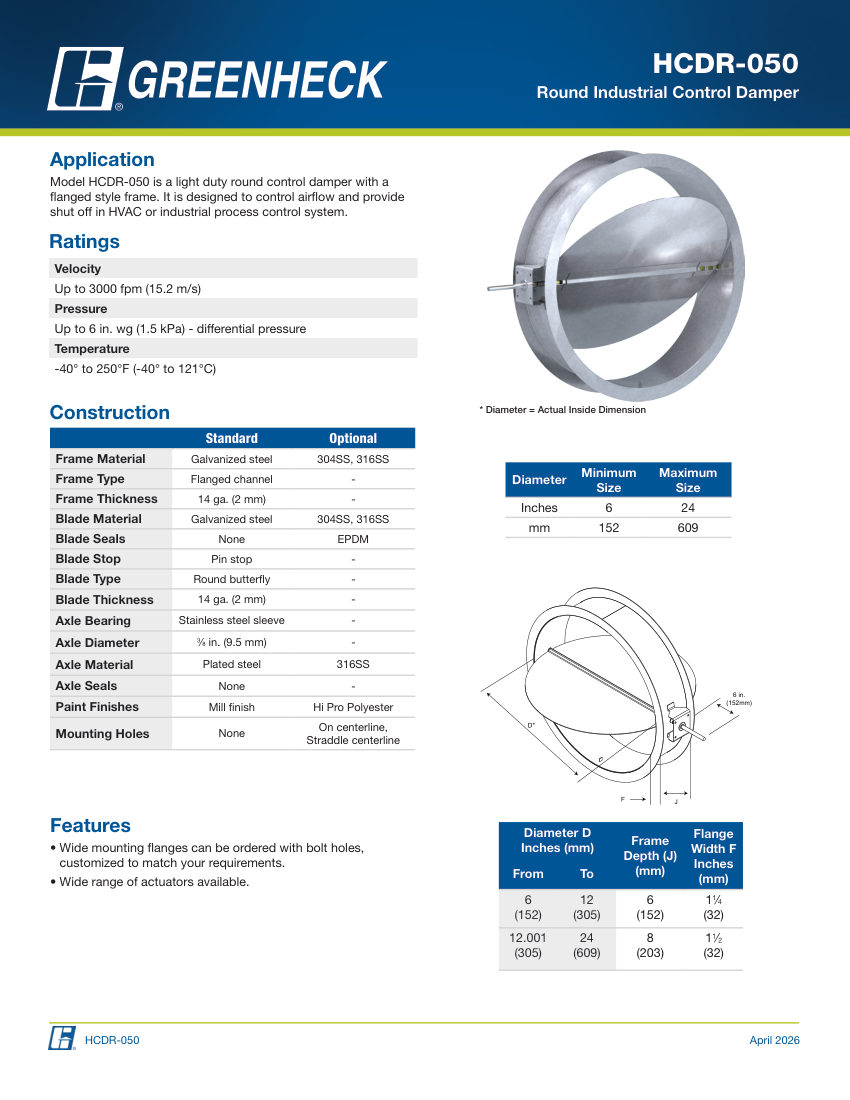

Greenheck hcdr-050 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcdr-050
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcdr-050
DescriptionGreenheck Round Industrial Control Damper (Control Damper). Model HCDR-050. Light duty round control damper with flanged style frame; Round butterfly blade type with pin stop
Temperature range-40° to 250°F (-40° to 121°C); Optional EPDM blade seals available. material: Galvanized steel (Standard), 304SS/316SS (Optional)
Connection size6 to 24 in. (152 to 609 mm)
End connectionFlanged channel
Pressure RatingUp to 6 in. wg (1.5 kPa) differential
Flow RateUp to 3000 fpm (15.2 m/s)
FinishMill finish (Standard), Hi Pro Polyester (Optional).
