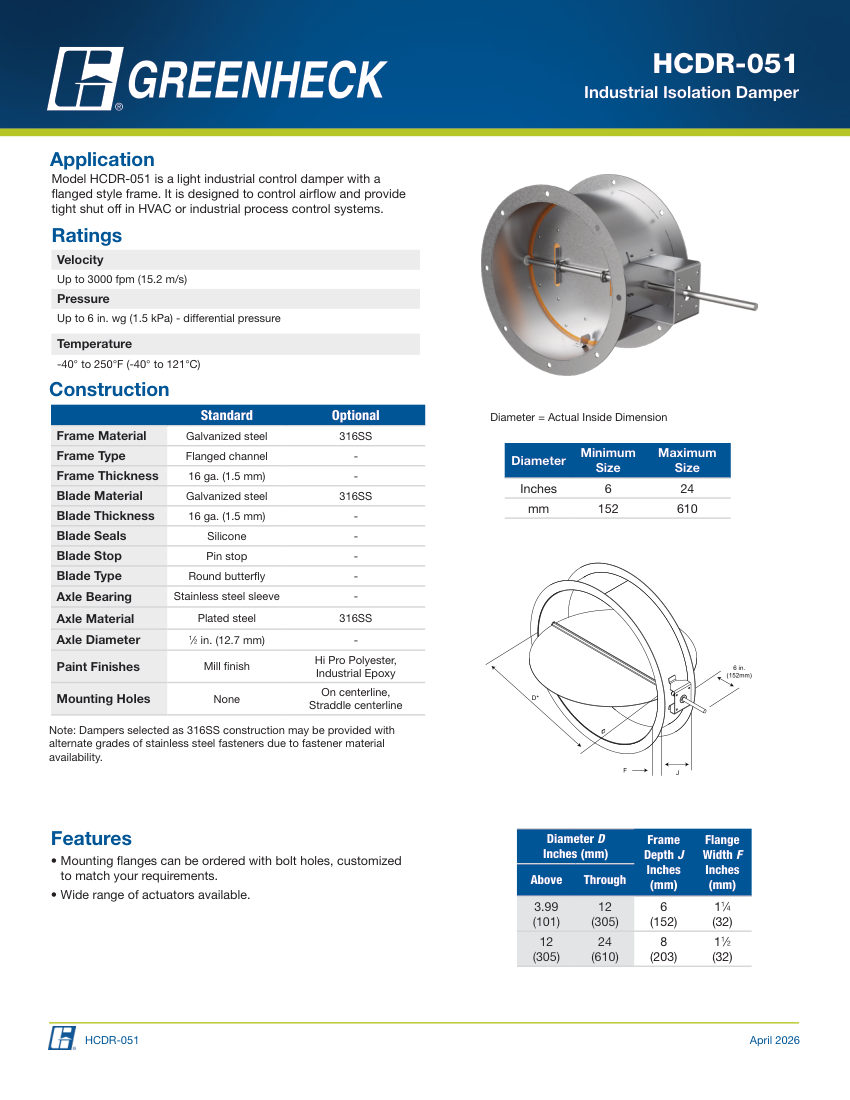

Greenheckhcdr-051 industrial isolation damperhcdr-051

Name: Greenheck hcdr-051 industrial isolation damper
Brand: Greenheck
SKU: hcdr-051

Greenheck Industrial Isolation Damper (HVAC Dampers). Model HCDR-051. Round butterfly blade type with pin stop

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	hcdr-051
Description	Greenheck Industrial Isolation Damper (HVAC Dampers). Model HCDR-051. Round butterfly blade type with pin stop
Temperature range	-40° to 250°F (-40° to 121°C); Silicone blade seals rated up to 400°F (204°C); Stainless steel sleeve axle bearings. material: Galvanized steel (Standard), 316SS (Optional)
Connection size	6 to 24 in. (152 to 610 mm)
End connection	Flanged channel
Pressure Rating	Up to 6 in. wg (1.5 kPa) differential
Flow Rate	Up to 3000 fpm (15.2 m/s)
Finish	Mill finish, Hi Pro Polyester, Industrial Epoxy.
