DIV 23 · HVACDAMPERSCUT SHEET INDEXED

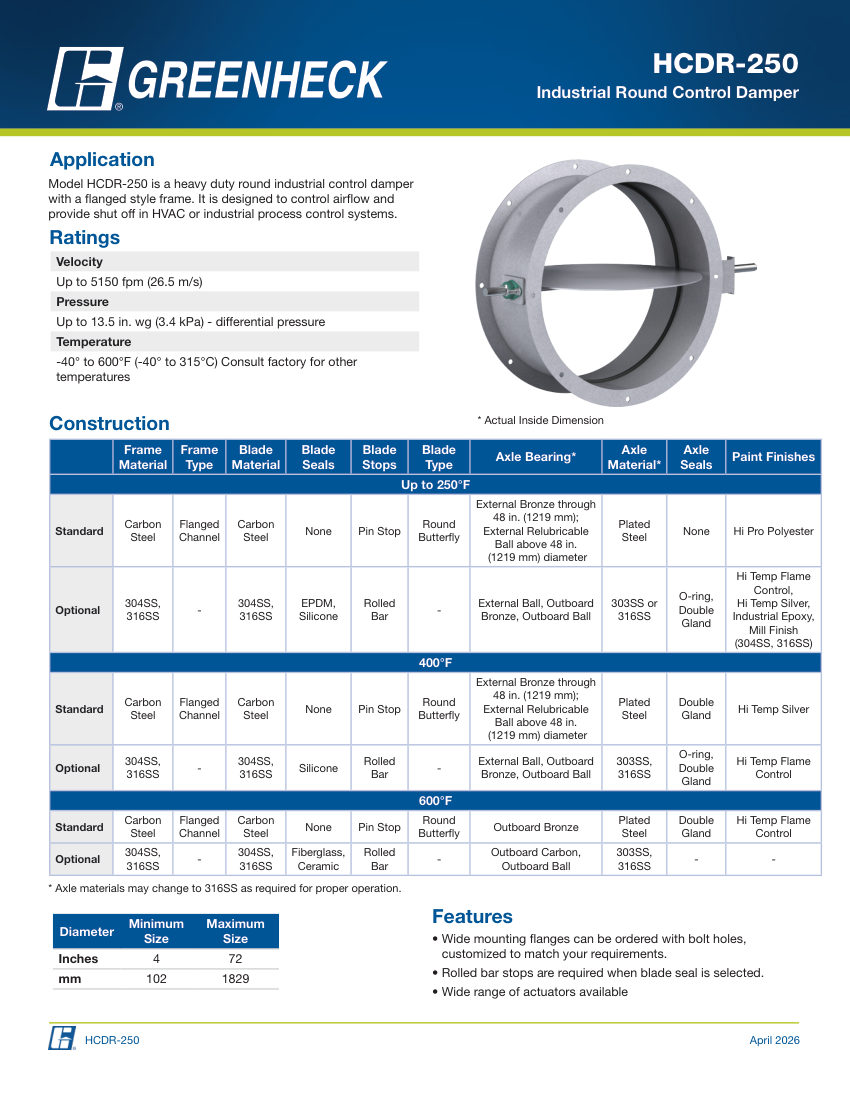

Greenheckhcdr-250 industrial round control damperhcdr-250

Name: Greenheck hcdr-250 industrial round control damper
Brand: Greenheck
SKU: hcdr-250

Greenheck Industrial Round Control Damper (HVAC Dampers). Model HCDR-250. Heavy duty round industrial control damper

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	hcdr-250
Description	Greenheck Industrial Round Control Damper (HVAC Dampers). Model HCDR-250. Heavy duty round industrial control damper
Temperature range	-40° to 600°F (-40° to 315°C)
Blade type	Round Butterfly
Axle bearing options	External Bronze, Relubricable Ball, Outboard Ball. material: Carbon Steel, 304SS, 316SS
Connection size	4 to 72 in (102 to 1829 mm)
End connection	Flanged Channel
Pressure Rating	Up to 13.5 in. wg (3.4 kPa) differential
Flow Rate	Up to 5150 fpm (26.5 m/s)
Finish	Hi Pro Polyester, Hi Temp Flame Control, Industrial Epoxy, Mill Finish.
