DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhcdr-350 industrial control damperhcdr-350

Greenheck Round Industrial Control Damper (Industrial Control Damper). Model HCDR-350. Heavy duty round design for HVAC or industrial process control; Temperature range -40°F to 1000°F (-40°C to 538°C); Blade material options include Carbon Steel, 304SS, and 316SS; Axle material options include Plated Steel, 303SS, and 316SS. material: Carbon Steel, 304SS, 316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcdr-350.pdfData sheet

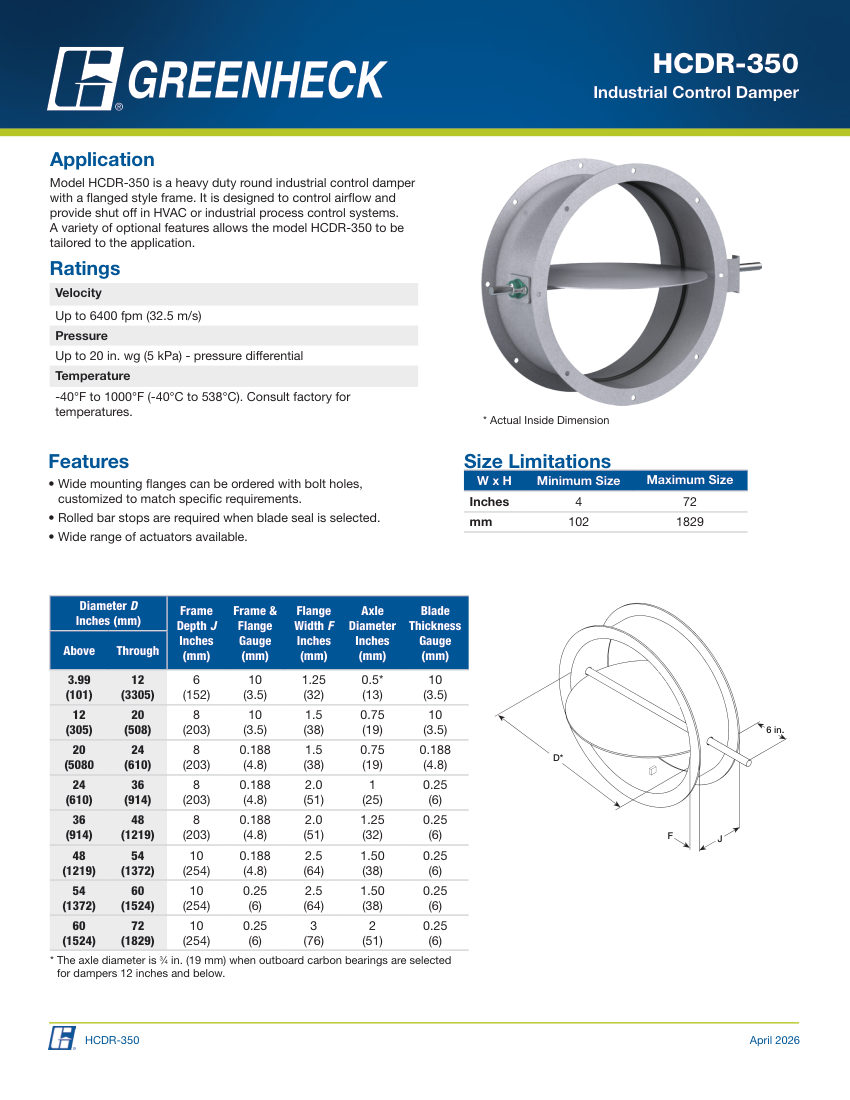

Greenheck hcdr-350 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcdr-350
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcdr-350
DescriptionGreenheck Round Industrial Control Damper (Industrial Control Damper). Model HCDR-350. Heavy duty round design for HVAC or industrial process control; Temperature range -40°F to 1000°F (-40°C to 538°C); Blade material options include Carbon Steel, 304SS, and 316SS; Axle material options include Plated Steel, 303SS, and 316SS. material: Carbon Steel, 304SS, 316SS
Connection size4 to 72 inches (102 to 1829 mm)
End connectionFlanged
Pressure RatingUp to 20 in. wg (5 kPa)
Flow RateUp to 6400 fpm (32.5 m/s)
FinishHi Pro Polyester, Hi Temp Flame Control, Hi Temp Silver, Industrial Epoxy,
