DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhcdr-351 industrial isolation damperhcdr-351

Greenheck Industrial Isolation Damper (HVAC Dampers). Model HCDR-351. Heavy duty round industrial isolation damper; Designed for tight shutoff with very low leakage

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcdr-351.pdfData sheet

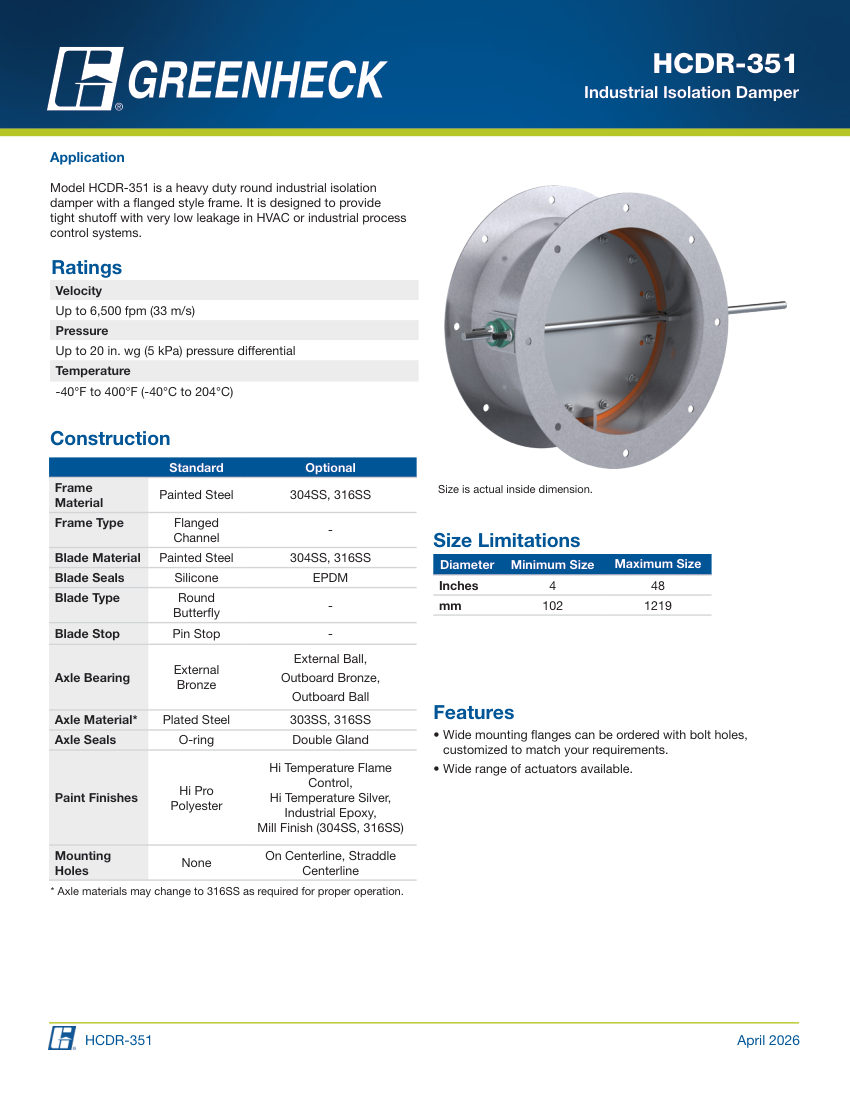

Greenheck hcdr-351 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcdr-351
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcdr-351
DescriptionGreenheck Industrial Isolation Damper (HVAC Dampers). Model HCDR-351. Heavy duty round industrial isolation damper; Designed for tight shutoff with very low leakage
Temperature range-40°F to 400°F (-40°C to 204°C)
Blade typeRound Butterfly. material: Painted Steel (Standard), 304SS/316SS (Optional)
Connection size4 to 48 inches (102 to 1219 mm)
End connectionFlanged
Pressure RatingUp to 20 in. wg (5 kPa)
Flow RateUp to 6,500 fpm (33 m/s)
FinishHi Pro Polyester (Standard), Hi Temperature Flame Control/Silver, Industrial Epoxy, Mill Finish (Optional).
